Product Name Transmitter
Model SDI-408/412
Series Industrial Video
Catalog
Product Description

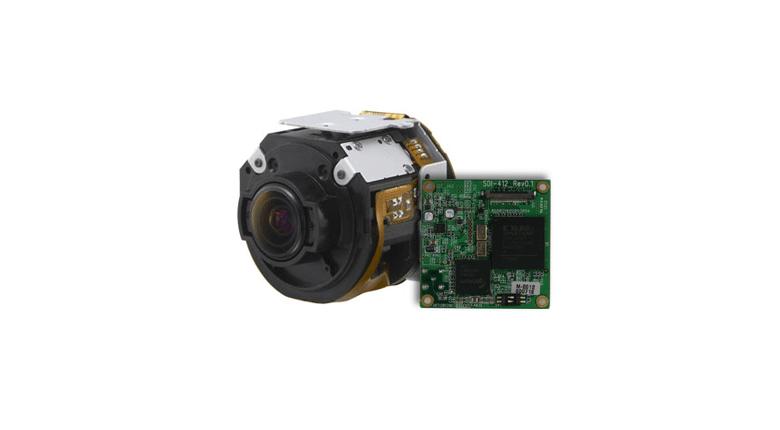

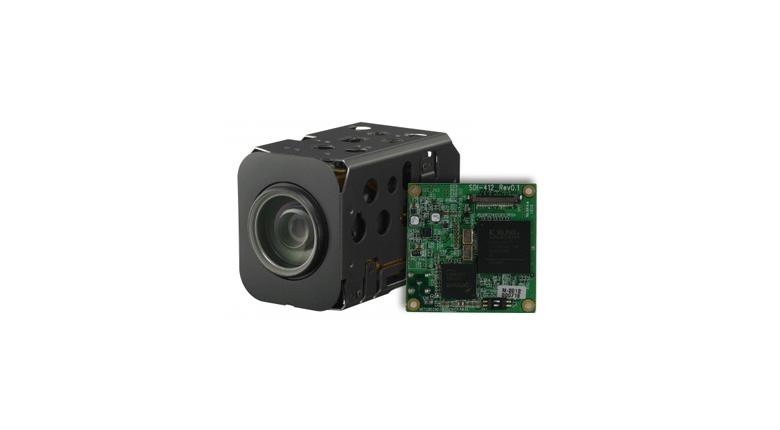

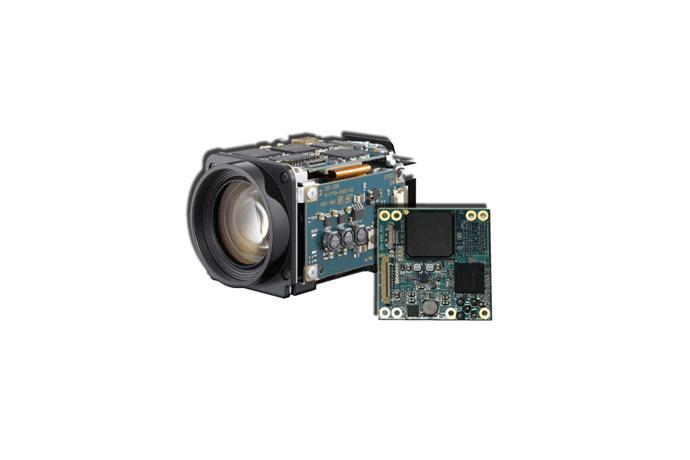

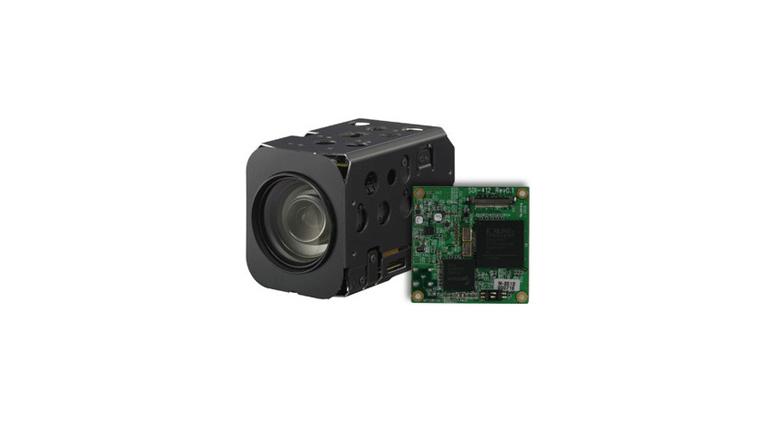

SDI-408 / 412

HD-SDI Interface Board for HD Camera Module

Sony FCH-H11 / EH Series

Description

Sony’s professional HD block camera with LVDS digital output can have HD-SDI output simply by adding Seorim HD-SDI interface board.

Due to its small size and light weight with Sony block cameras, you can use your own HD-SDI camera for professional applications; broadcasting, medical, machine vision and surveillance as well.


Feature

Dimension : 42 X 42 X 8.8 mm
Video Input : LVDS for HD Digital Video Data
Video Output :

1. HD-SDI ( available only in HD camera mode, 720p, 1080i)

  720p @ 50 / 59.94 / 60Hz (SMPTE296M)
  1080i @ 50 / 59.94 / 60Hz (SMPTE 274M)
  1080p @ 23.9 / 24 / 29.97 / 30Hz (SMPTE 274M)
  1080p @ 50 /59.94 / 60Hz (SMPTE 425M)

2. HD Analog Video (Bypass, available only in HD camera mode)

  Component Y, CB, CR

3. SD Analog Video (Bypass, available only in SD camera mode)

  Composite

Applicable Camera Module

  SDI-408: Sony FCB-H10 / H11
  SDI-411: Sony FCB EH Series (EH6300 / 3300 / 3150) / SE600 (Embedded Sync Only)
  SDI-412: Sony FCB EH Series (EH6300 / 3300 / 3150) / SE600)
