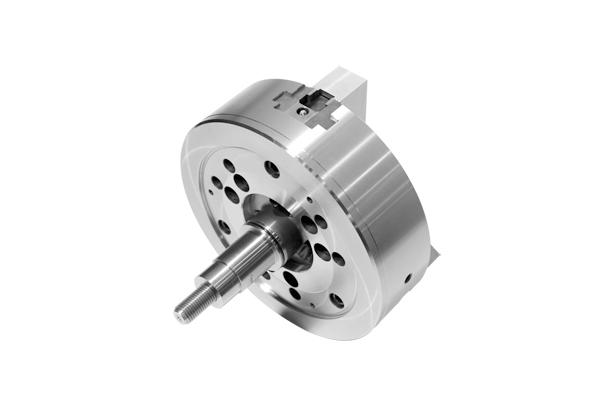

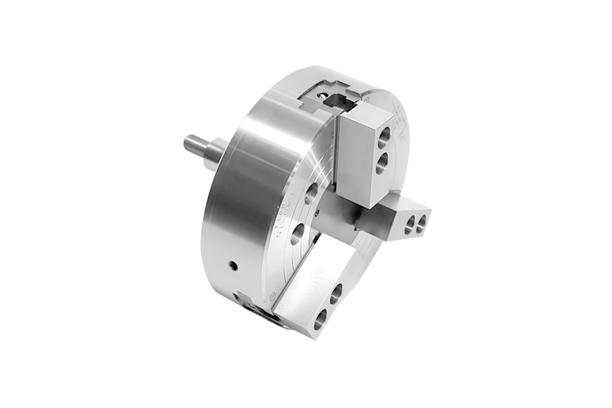

CLOSED CENTER POWER CHUCK (CAS)
Model Name
CAS-04
Series
Chuck / Closed Center Type
Data
DRAWING-SEOAM-CLOSED CENTER POWER CHUCK-CAS-06
Manufacturer information
provider logo
SEOAMPrecision gear manufacturer, Gear, Chuck, Cylinder, Curvic coupling, Reducing machine and more
Problem with product info?
Update request
Manufacturer
SEOAM
Brand
-
SKU
126661
Product Name
CLOSED CENTER POWER CHUCK (CAS)
Model Name
CAS-04, CAS-05, CAS-06, CAS-08, CAS-10, CAS-12, CAS-15, CAS-15 A11, CAS-15 A8, CAS-18, CAS-18 A11, CAS-18 A8, CAS-21, CAS-21 A11, CAS-21 A15, CAS-24, CAS-24 A11, CAS-32, CAS-32HC, CAS-40, CAS-40HC, CAS-50, CAS-50HC, CAS-63, CAS-63HC, CAS-80
Size
-
Weight
-
Product Details

Features

• Economical Model : Is is the most economical model without throught-hole in the chuck, and used when not passing a bar work.

• High Speed : Strong gripping force and safety of performance are secured by optimal design, and high speed rotation is achieved.

• Durability : Heat treatment is performed to alloy steel, and high accuracy, strength and durability are realized by improving lubrication system.

• Compatibility : the same soft jaws and hard jaws as those of big bore chuck are applied in order to secure mutual compatibility.



Outward Drawing




Technical data and specifications


Model Description




Specifications

Spec
Model
Order NO.Spindle nose NO.Jaw stroke(Diameter) mmPlunger stroke mmGripping MaxGripping MinMax. permissible input force KN(kgf)
CAS-0410104-51511064.4(445)
CAS-0510105-515135156.4(647)
CAS-061AS06A2-59.2201651919(1938)
CAS-081AS08A2-68.8212102328(2856)
CAS-101AS10A2-88.8252542432.5(3315)
CAS-121AS12A2-810.5303042641.5(4233)
CAS-151AS15A2-8,1116353816081.9(8362)
CAS-181AS18A2-8,11163545014081.9(8362)
CAS-211AS21A2-11,1516355308281.9(8362)
CAS-241AS24A2-11,15163561017081.9(8362)
CAS-321AS32-20.638800211100(10200)
CAS-401AS40-30.5571000330161(16450)
CAS-501AS50-30.5571250330161(16450)
CAS-631AS63-48601600-180(18367)
CAS-15 A81AS15A8A2-818.6353816073.5(7438)
CAS-15 A11147(14876)210018.6353816073.5(7438)
CAS-18 A81AS18A8A2-818.6354576073.5(7438)
CAS-18 A111AS18A11A2-1118.6354576073.5(7438)
CAS-21 A111AS21A11A2-1118.63553011098.1(9927)
CAS-21 A151AS21A15A2-1518.63553011098.1(9927)
CAS-24 A111AS24A11A2-1118.63561011098.1(9927)
CAS-32HC1AS32HC30+(30)38800296119(12232)
CAS-40HC1AS40HC46+(30)601000187161(16450)
CAS-50HC1AS50HC46+(30)601250187180(18367)
CAS-63HC1AS63HC48601600460196(20000)
CAS-801AS8048602000-196(20000)

Spec
Model
Max. static gripping force KN(kgf)Max. Permissible speed r.p.mweight(With standard soft jaws)Gd moment of inertiamatching cylinderMatching hard jawMatching soft jaw
CAS-0412.1(1224)500040.196(0.02)YAS-65-SJ-04T2
CAS-0517.7(1791)500060.56(0.06)YAS,C,P,T-80-SJ-05A1
CAS-0663(6426)6000131.77(0.18)YAS,C,P,T-100HJ-06T1SJ-06T1
CAS-0880(8160)4800255.39(0.55)YAS,C,P,T-125HJ-08T1SJ-08T1
CAS-10115(11730)41003711.17(1.20)YAS,C,P,T-125HJ-10T1SJ-10T1
CAS-12156(16014)340057.328.44(2.90)YAS,C,P,T-150HJ-10T1SJ-10T1
CAS-15248(35391)30409670.5(7.2)YAS,C,P,T-200HJ-15A3SJ-15A3
CAS-18248(35391)271013195(9.7)YAS,C,P,T-200HJ-15A3SJ-15A3
CAS-21272(27838)1940198188.2(19.2)YAS,C,P,T-200HJ-21B1SJ-21A1
CAS-24272(27838)176022367.8(6.92)YAS,C,P,T-200HJ-21B1SJ-21A1
CAS-32240(24490)90034123.8(2.43)YASTL-200HJ-32A1SJ-32A1
CAS-40361(36836)63067068(7.03)YAST-245HJ-40A1SJ-40A1
CAS-50361(36836)500800145(14.78)YAST-245HJ-40A1SJ-40A1
CAS-63320(32653)2801600500(50.97)YAST-245--
CAS-15 A8147(14876)21009896.6(7.12)YAS,C,P,T-200HJ-15A1SJ-15A2
CAS-15 A11147(14876)21009869.8(7.12)YAS,C,P,T-200HJ-15A1SJ-15A2
CAS-18 A8147(14876)1700132135.32(13.8)YAS,C,P,T-200HJ-15A1SJ-15A2
CAS-18 A11147(14876)1700132135.32(13.8)YAS,C,P,T-200HJ-15A1SJ-21A2
CAS-21 A11194(19632)1500195268.68(27.4)YAS,C,P,T-200-SJ21A2
CAS-21 A15194(19632)1500195268.68(27.4)YAS,C,P,T-200-SJ-21A2
CAS-24 A11194(19632)1200250456.2(46.52)YAS,C,P,T-200-SJ-21A2
CAS-32HC214(21916)80035023.8(2.43)YASTL-200HJ-32A1SJ-32A1
CAS-40HC214(21916)80035023.8(2.43)YASTL-200HJ-32A1SJ-32A1
CAS-50HC320(32653)500800145(14.78)YAST-245HJ-40A2SJ-40A2
CAS-63HC358(36600)4001600500(50.97)YAST-245HJ-40A2SJ-40A2
CAS-80390(39800)1503200----



DIMENSION

Item
Model
ABCDEFGHJKK(ANSI)K(JS)LL(ANSI)L(JS)M
CAS-041105260--6-80-3-M8--16.5--14
CAS-0513552807100-3-M816.519
CAS-06169741405116104.8236-M101420
CAS-08210851705150133.4286-M121525
CAS-10254892205190171.4346-M161830
CAS-123041062206190171.4396-M161830
CAS-153811143006260171.4276-M202043
CAS-184501143006260235276-M202043
CAS-215301253806330.2330.2276-M203060
CAS-246101253806330.2330.2276-M203060
CAS-328001503806-330.2-6-M243176
CAS-4010001805208-510-6-M2434100
CAS-5012501805208-463.6-6-M2432100
CAS-6316002207208-647.6-6-M3046-
CAS-15 A8381125225139.7142024.2185.725171.4585/8-11UNC6-M162422.5
CAS-15 A11381125280196.8642029.36117.5235103/4-10UNC6-M202326
CAS-18 A8457125225139.7142024.2185.725171.4585/8-11UNC6-M162422.5
CAS-18 A11457125280196.8642029.36117.5235103/4-10UNC6-M202326
CAS-21 A11530140280196.8642029.36117.5235103/4-10UNC6-M2033.431
CAS-21 A15530140380285.7632235.71165.1330.2107/8-9UNC6-M2235.432
CAS-24 A11610140280196.8642029.36117.5235103/4-10UNC6-M2033.431
CAS-32HC8001503806330.26-M243076.2
CAS-40HC10001804608463.66-M2432152.4
CAS-50HC12501805208463.66-M2432152.4
CAS-63HC16002207208647.66-M3047152.4
CAS-80200025072010101120

Item
Model
N MaxN MinO MaxO MinP MaxP MinQRSTVWXYZ
CAS-042623.51075-102510253M10X1.5-25-2754
CAS-053229.511.579-62510363M12X1.75-28-2758.5
CAS-064136.7137101.581.53112364M16X2.03-M632323572
CAS-0846.341.922.591271063914365M20X2.53-M638384395
CAS-1051.146.730.711.21581334416365M20X2.53-M8384450110
CAS-126155.748.712.71631335018365M20X2.53-M8385054111
CAS-15736554.715.7104695025.5556M30X3.53-M10556060
CAS-18106.598.548.523.292575025.5556M30X3.53-M10556060.3135
CAS-21867893.527.597626525556M30X3.53-M12556071180
CAS-24124.5116.593.527.597626525556M30X3.53-M12556071180
CAS-328877.7--35-37525.5608M30X3.5-5511483165
CAS-401451298--53-3983065-4M36X4.0-60-106200
CAS-50145129.8--35-22983068-4M36X4.0-60-106270
CAS-63----13-47--M36X4.0-----
CAS-15 A874.565.254.521.535050175M27X3.08563
CAS-15 A1174.565.254.521.535050175M27X3.06563
CAS-18 A874.565.290.521.535050175M27X3.012063
CAS-18 A1174.565.290.521.535050175M27X3.010063
CAS-21 A11101.592.2100.521.535055220M30X3.511075
CAS-21 A15101.592.2100.521.535055220M30X3.511075
CAS-24 A11101.592.2136.521.521.5055220M30X3.514575
CAS-32HC172125.535-37525.56511M30X3.55511483165
CAS-40HC20715435-2511030680M36X4.060100270
CAS-50HC20715435-251103068-4-60-106270
CAS-63HC251227--13-471103068-M36X4.060-104
CAS-80--23-371103068-4M42X4.5-66-105270
