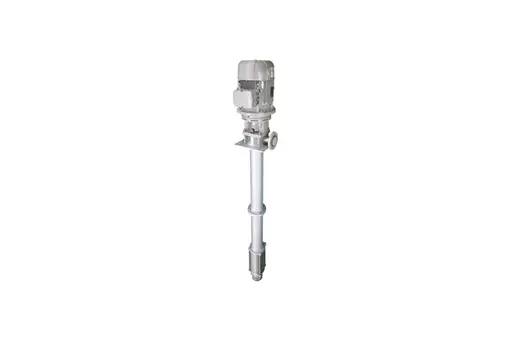

SEO KWANG PUMP
SEO KWANG PUMP
Description
Rating
| Parts& Discharge Size | 32mm~80mm | |
| 토출량Capacity | 5㎥/hr~70㎥/hr | |
| 총양정Head | 10m~225m | |
| 회전수rpm | 3500rpm | |
| 회전방향Rotaion | Clockwise(View from coupling end) | |
| 허용운전온도Temperature | -10℃~180℃ | |
| 임펠러형식ImpellerType | Enclosed | |
| 플랜지Flange | 호칭압력 | Suc,KS 10Kgf/㎤ Dis. KS 30Kgf/㎤ |
| 가스켓자리 | FF/RF | |
| 노즐방향 | BottomSuction / Side Discharge | |
| 축봉방식ShaftSealing | MechanicalSeal | |
Performance Curve
Technical Data
Material
| No | Name of parts | Materials | |
| KS | JIS | ||
| 1 | Discharge Casing | STS304 | SUS304 |
| 2 | Impeller | STS304 | SUS304 |
| 3 | Stage Casing | STS304 | SUS304 |
| 5 | Pump Shaft | STS420J2 | SUS420J2 |
| 6 | Diffuser | STS304 | SUS304 |
| 7 | Stage Bearing | CERAMIC | CERAMIC |
| 8 | Impeller Set Bolt | STS304 | SUS304 |
| 9 | Impeller Set Washer | STS304 | SUS304 |
| 10 | Coupling | GC200 | FC200 |
| 12 | Mechanical Seal | SIC+CARBON | SIC+CARBON |
| 13 | Base | STS304 | SUS304 |
| 15 | Stage Sleeve | STS304 | SUS304 |
| 16 | O-Ring | EPDM/VITON | EPDM/VITON |
| 17 | Air Vent | STS304 | SUS304 |
| 18 | Adapter | GC200 | FC200 |
| 19 | Colum Pipe | STS304 | SUS304 |
| 20 | Bearing | STB2 | STB2 |
| 21 | Bearing Housing | GC200 | FC200 |
| 22 | Strainer | STS304 | SUS304 |
