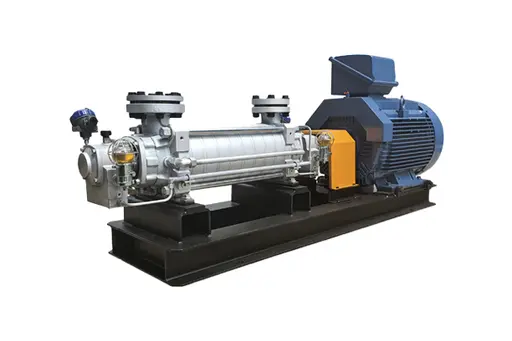

다단펌프 SKHT 3500 rpm

Model Name

SKHT 8050A

Series

다단펌프

View AllView All Series

Data

Manufacturer information

SEO KWANG PUMP

Multi-stage Turbine Pumps Manufacturer, High-pressure Centrifugal Pumps

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

SEO KWANG PUMP

Product Type

Machine

Brand

SKU

142601

Product Name

다단펌프 SKHT 3500 rpm

Model Name

SKHT 8050A

Size

Weight

Product Details

Rating

Parts & Discharge Size	32mm~ 150mm
토출량Capacity	~60㎥
총양정Head	~600m
회전수rpm	3500rpm,1750rpm
회전방향Rotaion	CCWClock wise(View from coupling end)
허용운전온도Temperature	-10℃~200℃
임펠러형식Impeller Type	Enclosed
축봉방식Shaft Sealing	MechanicalSeal

Performance Curve

Technical Data

Dimensions

Skht 32,40,50 ,A,B,C	Number of stages	DN1	DN2	a	f	f1	f2	f3	h	h3	L1	L2	b1	b2	d1
Skht 32,40,50 ,A,B,C	Number of stages	Suction	Discharge	a	f	f1	f2	f3	h	h3	L1	L2	b1	b2	d1
5032	3	50	32	169	283	264	224	243	158	132	164	204	270	310	14
	4	50	32	219	283	264	224	243	158	132	214	254	270	310	14
	5	50	32	269	283	264	224	243	158	132	264	304	270	310	14
	6	50	32	319	283	264	224	243	158	132	314	354	270	310	14
	7	50	32	369	283	264	224	243	158	132	364	404	270	310	14
	8	50	32	419	283	264	224	243	158	132	414	454	270	310	14
	9	50	32	469	283	264	224	243	158	132	464	504	270	310	14
	10	50	32	519	283	264	224	243	158	132	514	554	270	310	14
	11	50	32	569	283	264	224	243	158	132	564	604	270	310	14
	12	50	32	619	283	264	224	243	158	132	614	654	270	310	14
	13	50	32	669	283	264	224	243	158	132	664	704	270	310	14
	14	50	32	719	283	264	224	243	158	132	714	754	270	310	14
5040	4	50	40	236	306	295	242	249	165	132	225	265	270	310	14
	5	50	40	291	306	295	242	249	165	132	280	320	270	310	14
	6	50	40	346	306	295	242	249	165	132	335	370	270	310	14
	7	50	40	401	306	295	242	249	165	132	390	430	270	310	14
	8	50	40	456	306	295	242	249	165	132	445	485	270	310	14
	9	50	40	511	306	295	242	249	165	132	500	540	270	310	14
	10	50	40	566	306	295	242	249	165	132	555	595	270	310	14
	11	50	40	621	306	295	242	249	165	132	610	650	270	310	14
	12	50	40	676	306	295	242	249	165	132	665	705	270	310	14
	13	50	40	731	306	295	242	249	165	132	720	760	270	310	14
	14	50	40	786	306	295	242	249	165	132	775	805	270	310	14
	15	50	40	841	306	295	242	249	165	132	830	845	270	310	14
8050	3	80	50	212	350	338	280	292	200	150	190	230	290	330	16
	4	80	50	274	350	338	280	292	200	150	252	292	290	330	16
	5	80	50	336	350	338	280	292	200	150	314	354	290	330	16
	6	80	50	398	350	338	280	292	200	150	376	416	290	330	16
	7	80	50	460	350	338	280	292	200	150	438	478	290	330	16
	8	80	50	522	350	338	280	292	200	150	500	542	290	330	16
	9	80	50	584	350	338	280	292	200	150	562	602	290	330	16
	10	80	50	646	350	338	280	292	200	150	624	664	290	330	16
	11	80	50	708	350	338	280	292	200	150	686	726	290	330	16
	12	80	50	770	350	338	280	292	200	150	748	788	290	330	16
	13	80	50	832	350	338	280	292	200	150	810	850	290	330	16
	14	80	50	894	350	338	280	292	200	150	872	912	290	330	16
	15	80	50	956	350	338	280	292	200	150	934	934	290	330	16
