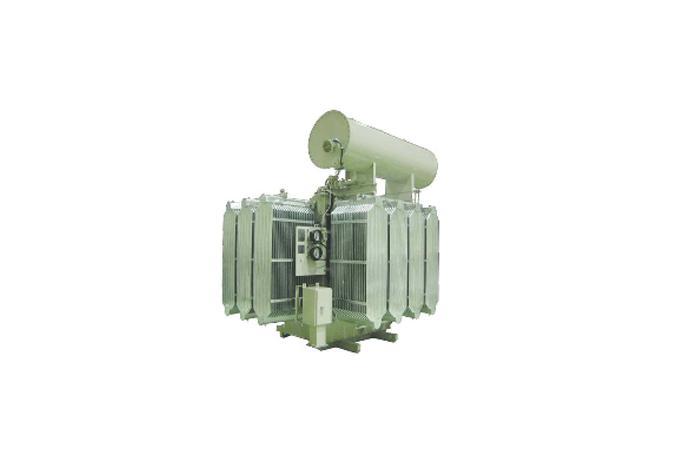

Product Name Auto Transformer
Series Oil Immersed Transformer
Catalog Catalog SANIL Auto Transformer.PDF
Product Description

Auto transformer has a single winding which shares a part of winding common for both primary and secondary sides. Advantages are light weight, low copper losses, and economical design.


Sanil auto transformers are operated in railway substations and also for compensation purpose to limit the excitation current while starting electric motor.


● Maximum Rated Capacity : 15MVA / 30MVA

● Maximum Rated Voltage : 55Kv /27.5KV

● Frequency : 50, 60 Hz

● Phase : 1Ø, 3Ø

● Insulation : A Class

● Cooling Method: ONAN / AN

● Standard : IEC, KS
