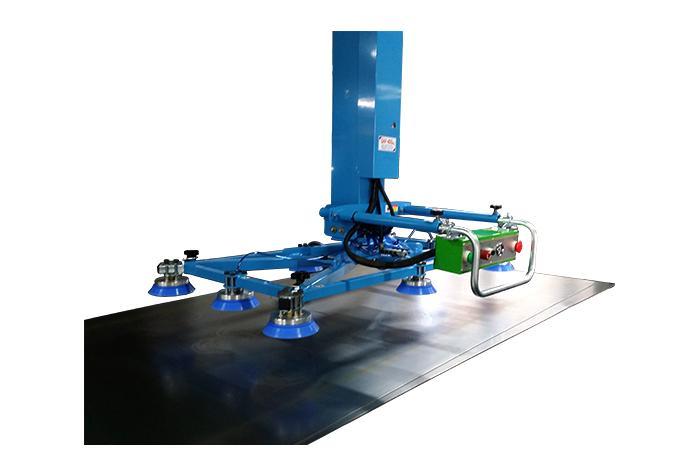

Product Name SAF- L Type Air Balance
Model SAF-L-150, SAF-L-300, SAF-L-450
Series Products
Catalog
Product Description

Suitable for repeated movement of short distance thanks to perfect compatibility with laser cutters of plate materials such as steel, aluminum, plywood or MDF.


Product features

– Noise is minimized by using compressed air only with no electricity.
– Ideal for repeated movement in short distance.
– Device can be moved in the 3-dimensional arc direction and working speed can be manually adjusted by the personnel.
– Maximum work precision can be ensured as there is no abrupt swinging or vibration.
– Simple circuit structure enables accurate functioning of all features while minimal downtime and easy part supply are ensured.
– Working speed can be manually adjusted by the personnel.
– As the balance is constantly maintained, the device does not move in any direction while in stationary condition.
– Time to move steel plates can be reduced by using 4-layer steel plate loading device in the dimensions of 4×8 and 5×10.



Specifications

MODEL Allowed
weight
(kg)
Dimension (mm) Product
weight
(kg)
Jib height Rail height Product height Handle length Rail length
SAF-L-150 150 4000(6000) 3400(4000) 1000(1300) 300~500 4000 400
SAF-L-300 300 4000(6000) 3400(4000) 1000(1300) 300~500 4000 450
SAF-L-450 450 4000(6000) 3400(4000) 1000(1300) 300~500 3500 500



Installation example

Samin ENG SAF- L Type Air Balance SAF-L-SeriesSamin ENG SAF- L Type Air Balance SAF-L-Series 1Samin ENG SAF- L Type Air Balance SAF-L-Series 2Samin ENG SAF- L Type Air Balance SAF-L-Series 3Samin ENG SAF- L Type Air Balance SAF-L-Series 4Samin ENG SAF- L Type Air Balance SAF-L-Series 5
