product Image
6 Speed DCT Motor
Model Name
-
Series
Automobile
View All
Data
-
Manufacturer information
provider logo
Samhyun

Electric / Electronic parts manufacturing, Defense industry, Robot, Alternator development, Startor motor, Press line and more

Problem with product info?
Update request
Manufacturer
Samhyun
Product Type
Machine
Brand
-
SKU
42598
Product Name
6 Speed DCT Motor
Model Name
-
Size
-
Weight
-
Product Details

▪ Application

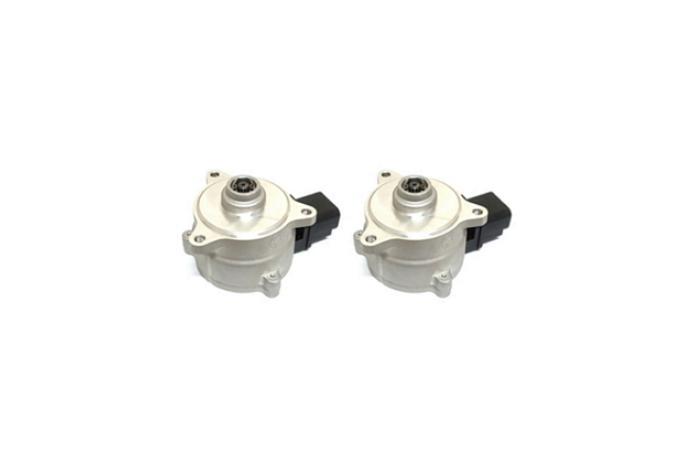

  Clutch Actuator Motor for 6-speed Hybrid vehicle DCT

  Performs Clutch Actuator of Dual Clutch Transmission system for 6-speed DCT.

  Consists of 2 brushless DC motors and 1 all-in-one housing, and has excellent

  durability and safety.


▪ Features

  Has compact size and high-efficient performance, long lifespan.


▪ Specifications

  Input Voltage - DC13.5 (V)

  Max. Power - 210 (W)

  Sensor: Hall Sensor
