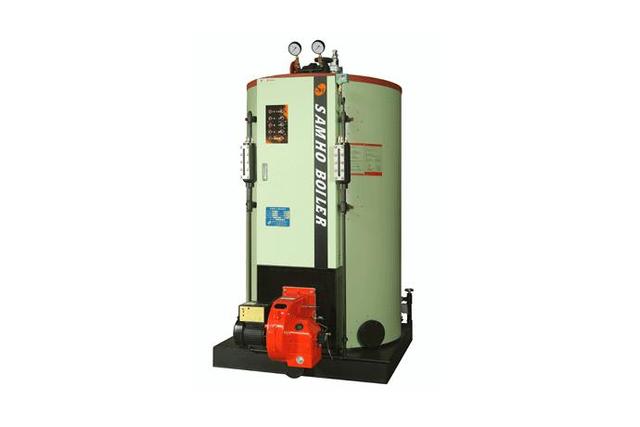

Samho Boiler
Samho Boiler
Description
· Economic:
① Steam pressure occurrence within 3 minutes after operation
② No license, No-examination (Except for using Gas)
③ It is possible to install in a small space.
④ Water supply preheating by using waste heat (more than 50°C of withdrawal temperature)
· Convenience:
① Automatic controlling system that all functions are achieved perfectly and conveniently by single-touch.
② Easy to manage and repair by the manual control system
③ Great convenience to manage and operate by built in type additional equipment which related to automation
④ High safety by the double or triple safety control system
· Place to use:
Restaurant / Sauna / Fiber needle work / Dye works / Brewery / Bean curd factory / Chemical factory / Heating and hot-water supply / Brickyard / Socks fabrication plant / Noodles factory / Baking And Pastry Arts / Rice cake factory etc..
|
Division / Type |
SMS-200 |
SMS-300 |
SMS-400 |
SMS-500 |
SMS-800 |
SMS-1000 |

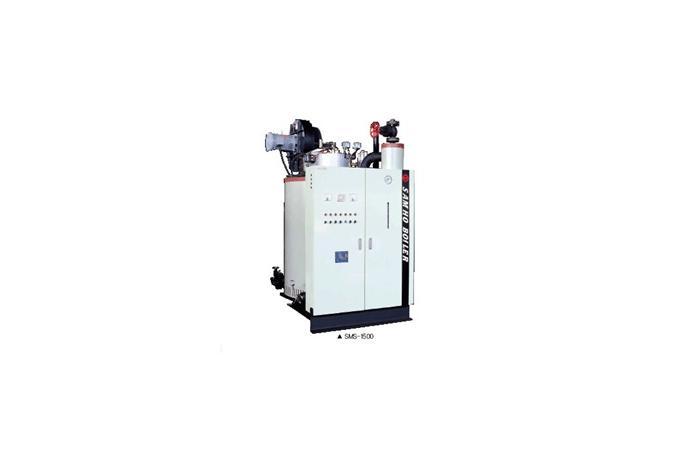

SMS-1500 |
SMS-2000 |
SMS-2500 |
SMS-3000 |
||
|
Proper form of Evaporation |
kg/h |
200 | 300 | 400 | 500 | 800 | 1,000 | 1,500 | 2,000 | 2,500 | 3,000 | |
|
Max. Working Pressure |
kg/㎠ |
10{1.0 MPa} | ||||||||||
|
Efficiency |
% |
More than 88% | More than 90% | |||||||||
|
Electric Tranmission Area |
㎡ |
4.9 | 4.9 | 4.99 | 4.99 | 9.9 | 9.97 | 9.97 | 23.9 | 31 | 40.4 | |
|
Weight |
Ton |
0.6 | 0.6 | 0.8 | 0.9 | 1.85 | 1.98 | 2.2 | 3.0 | 3.5 | 4.2 | |
|
Titration |
ℓ |
68 | 96 | 98 | 98 | 120 | 195 | 200 | 310 | 370 | 450 | |
|
Fuel Consumption |
Light Oil |
kg/h |
13.8 | 20.7 | 27.6 | 34.5 | 54.0 | 67.5 | 101.3 | 135.1 | 168.9 | 202.6 |
|
LNG |
N㎥/h |
14.4 | 21.6 | 28.7 | 35.9 | 56.2 | 70.3 | 105.4 | 140.6 | 175.7 | 210.8 | |
|
LPG |
N㎥/h |
6.4 | 9.5 | 12.7 | 15.9 | 24.9 | 31.1 | 46.6 | 62.2 | 77.7 | 93.3 | |
|
Heavy Oil |
kg/h |
14.0 | 20.9 | 27.9 | 34.9 | 54.6 | 68.2 | 102.3 | 136.4 | 170.5 | 204.6 | |
|
Capacitance of Electric |
kW |
1.0 | 1.12 | 1.55 | 2.25 | 5.6 | 6.3 | 8.1 | 11.95 | 15.45 | 15.45 | |
|
|
Main Steam Valve |
A |
25 | 25 | 32 | 40 | 50 | 50 | 65 | 80 | 80 | 100 |
|
Progression Valve |
15 | 20 | 20 | 20 | 25 | 25 | 25 | 32 | 32 | 32 | ||
|
Drainage Valve |
25 | 25 | 25 | 25 | 25 | 32 | 32 | 32 | 32 | 32 | ||
|
Safety Valve |
32(저) | 32(저) | 40(저) | 40(저) | 25(전) | 25(전) | 32(전) | 40(전) | 40(전) | 40(전) | ||
|
Drain Oil Valve |
15 | 15 | 15 | 15 | 20 | 20 | 20 | 25 | 25 | 25 | ||
|
Fuel Gas |
32 | 32 | 40 | 40 | 40 | 50 | 50 | 50 | 40 | 50 | ||
|
Chimney |
ømm |
200 | 250 | 250 | 250 | 300 | 300 | 300 | 400 | 450 | 500 | |
|
Minimum Dimension |
Width |
mm |
800 | 890 | 900 | 900 | 1.072 | 1.286 | 1.320 | 1.702 | 1.856 | 1.900 |
|
Length |
1,020 | 1,147 | 1,147 | 1,147 | 1,703 | 1,876 | 1,976 | 2,219 | 2,600 | 2,730 | ||
|
Height |
1,300 | 1,345 | 1,383 | 1,400 | 1,647 | 1,838 | 1,838 | 2,376 | 2,800 | 2,544 | ||
|
Maximum Dimension |
Width |
mm |
996 | 1,000 | 1,030 | 1,030 | 1,650 | 1,650 | 1,680 | 2,800 | 2,800 | 3,040 |
|
Length |
1,237 | 1,400 | 1,400 | 1,400 | 1,900 | 1,980 | 1,980 | 3,000 | 3.040 | 3.040 | ||
|
Height |
1,600 | 1,820 | 1,820 | 1,920 | 2,280 | 2,380 | 2,380 | 2,980 | 3,300 | 3,400 | ||
※ Low calorific power fuel
① LNG：41.45 MJ/N㎥{9,900kcal/N㎥}, ② LPG{Propane}：93.7 MJ/N㎥{22,380kcal/N㎥},
③ Light Oil：43.12 MJ/kg{10,300kcal/kg}, ④ Heavy Oil：42.7 MJ/kg{10,200kcal/kg}
※ The specification list are subject to change without prior notice to improve the performance and technology development.
