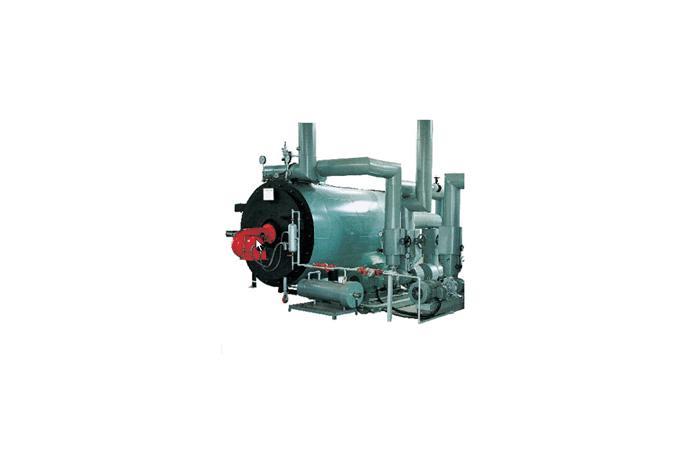

· Economic:
① Indirect heating type and efficiency is high because there is no scale occurrence.
② Easy to installation and construction by mounting heating and hot-water supply heat exchanger.
③ Heat exchanger is no corrosion occurrence cause from made of copper pipe/stainless steel pipe.
④ Because it is atmosphere open-end structure, can be use long and safely.
· Convenience:
① Automatic controlling system that all functions are achieved perfectly adconveniently by single-touch.
② Easy to clean because a heat exchange copper pipe is arranged by work horizontal type.
③ Great convenience to manage and operate by the built in type additional equipment which related to automation.
· Place to use:
Sauna / Heating and Hot-water supply / fish farm / hotel / hospital etc.
|
Division / Type |
SNB-10 |
SNB-15 |
SNB-20 |
SNB-30 |
SNB-40 |
SNB-50 |
SNB-60 |
SNB-80 |
SNB-100 |
SNB-150 |
SNB-200 |
||
|
Rated Output |
kcal/h |
100,000 |
150,000 |
200,000 |
300,000 |
400,000 |
500,000 |
600,000 |
800,000 |
1,000,000 |
1,500,000 |
2,000,000 |
|
|
Electric Transmission Area |
㎡ | 5.1 | 6.8 | 7.0 | 9.4 | 11.6 | 12.8 | 15.2 | 16.8 | 19.0 | 25.4 | 32.0 | |
|
Efficiency |
% | More than 91% | |||||||||||
|
Power Consumption |
kW | 0.4 | 0.4 | 0.75 | 1.0 | 1.5 | 1.5 | 2.0 | 2.7 | 4.1 | 8.0 | 12.0 | |
|
Titration |
ℓ | 460 | 480 | 540 | 620 | 750 | 780 | 1,050 | 1,220 | 1,400 | 1,800 | 2,050 | |
|
Weight |
Ton | 1.2 | 1.4 | 1.5 | 1.65 | 1.8 | 2.0 | 2.6 | 2.8 | 3.6 | 4.2 | 4.6 | |
|
Fuel Consumption |
Light Oil |
kg/h | 10.6 | 16 | 21.3 | 32 | 42.6 | 53.3 | 64 | 85.3 | 106.6 | 160 | 213 |
|
LNG |
N㎥/h | 11.1 | 16.6 | 22.2 | 33.3 | 44.4 | 55.5 | 66.6 | 88.8 | 111 | 166 | 222 | |
|
LPG |
N㎥/h | 4.9 | 7.3 | 9.8 | 14.7 | 19.6 | 24.5 | 29.4 | 39.2 | 49.1 | 73.6 | 98.2 | |
|
Heavy Oil |
kg/h | 10.7 | 16.2 | 21.5 | 32.3 | 43 | 53.8 | 64.6 | 86.1 | 107.6 | 161.6 | 215.1 | |
|
Joint Valve |
Oil Inlet |
A | 8 | 8 | 15 | 15 | 15 | 20 | 20 | 20 | 20 | 25 | 25 |
|
Gas Inlet |
A | 20 | 20 | 25 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
|
Chimney |
ømm | 200 | 200 | 200 | 250 | 250 | 300 | 300 | 350 | 400 | 450 | 500 | |
|
External Form |
Width |
mm | 900 | 920 | 920 | 1,100 | 1,150 | 1,250 | 1,250 | 1,280 | 1,280 | 1,400 | 1,600 |
|
Length |
mm | 1,540 | 1,800 | 1,840 | 2,250 | 2,400 | 2,430 | 2,480 | 2,600 | 2,920 | 3,620 | 3,820 | |
|
Height |
mm | 1,710 | 1,760 | 1,780 | 1,850 | 1,980 | 2,100 | 2,150 | 2,200 | 2,200 | 2,420 | 2,540 | |
|
Max. Working Pressure of Water |
mH2O | 100 | |||||||||||
|
Heat Exchanger |
material | CupperTube / Stainless Steel Tube | |||||||||||
|
Heating In-Out |
A | 40 | 50 | 65 | 80 | 100 | 100 | 125 | 125 | 125 | 150 | 150 | |
|
Hot Water In-Out |
A | 20 | 20 | 25 | 32 | 32 | 40 | 40 | 50 | 65 | 80 | 80 | |
※ Low calorific power of fuel
① LNG：41.45 MH/N㎥{9,900kcal/N㎥}, ② LPG{Propane}：93.7 MJ/N㎥{22,380kcal/N㎥}
③ Light Oil：43.12 MJ/kg{10,300kcal/kg}, ④ Heavy Oil：42.7 MJ/kg{10,200kcal/kg}
※ The specification list are subject to change without prior notice to improve the performance and technology development.
