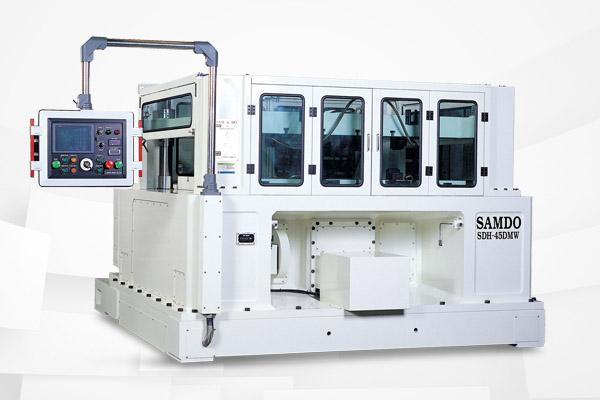

Product Name High Speed Precision Dieing Press
Model SDH-DMW, SDH-45DMW
Series Special Press
Catalog
Product Description

The characteristics of DMW

  • For the production of under drive type press for LCD film and electronic parts
  • Reinforced fine dust removal function
  • Maximized hardness of 4 post guides
  • Centralized touch screen with convenience and various functions
  • Installed electric-drive die height (0.01mm)



DMW Specification

ItemUnitSDH-45DMW
CapacityTON45
Stroke Lengthmm100
Stroke per MinuteS.P.M10 ~ 60
Die Heightmm500
Slide Adjustmentmm30
Slide Areamm1600 x 1600
Bolster Areamm1600 x 1600
Weight Approx.TON16
L x D x Hmm2700 x 3000 x 2000
