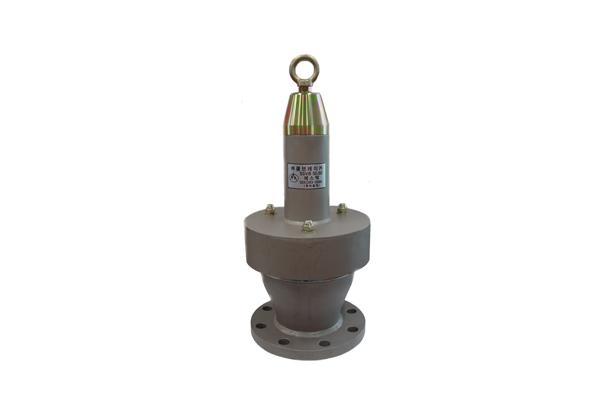

product Image
버큠브레이커
Model Name
SSVB5060
Series
VACUUM BREAKER
Data
-
Manufacturer information
provider logo
S-TECH

Auto shot valve, Auto ar valve, Filler valve

Problem with product info?
Update request
Manufacturer
S-TECH
Product Type
Machine
Brand
-
SKU
123485
Product Name
버큠브레이커
Model Name
SSVB5060
Size
-
Weight
-
Product Details

사양


SSVB02


특징

운전시 소음이 거의 없는 작고 가벼운 버큠브레이커 (VACUUM BREAKER)

*특징쇼트에어브라스팅 작업장에 흩어진 쇼트볼 회수설비(버큠 리카바리 설비)에 조립되어 필요 이상의 진공 압력 발생시 설비의 찌그러짐을 방지하기 위하여 외부로부터 에어를 공급하여 압력을 조정해 주는 역할을 수행하는 밸브이다.

- 설비의 용량에 따라 아이볼트를 시계 반대 방향으로 회전시켜 카바를 열어 스프링 누름 더블너트를 조정하여 광범위하게 사용 할 수 있다.
- 특히 운전시 소음이 심한 기존 제품에 비하여 소음이 거의 없는 거나 마찬가지이다.
- 사용 압력은 스프링을 눌러주는 너트를 이용 조절할 수 있게 되어 있다.
- 조립부 플랜지 규격 ( 100A x 10K 플랜지)
- 외형치수 : Φ215mm x 높이 470mm
- 중량 : 15kg


기술 및 인증

※특허출원중

[진공브레이커] 디자인등록출원
출원번호 (제30-2011-0018339호)
S-TECH
Auto shot valve, Auto ar valve, Filler valve
S-TECH was established in 1989 as a manufacturer specializing in valves and parts for short air blasting equipment. Since then, it has been developing and supplying more convenient products that were previously entirely dependent on imports. We collaborate with numerous companies, including Hyundai Heavy Industries, Hyundai Mipo Dockyard, Hyundai Samho Heavy Industries, Hanwha Ocean, Samsung Heavy Industries, K Shipbuilding, Doosan Energy, and HSD Engine, among others. We continuously research and strive to provide better products, holding multiple patents and utility models. We will continue to strive to become a company that grows alongside our customers by supplying high-quality products with superior technology.
Inquiry
