product Image

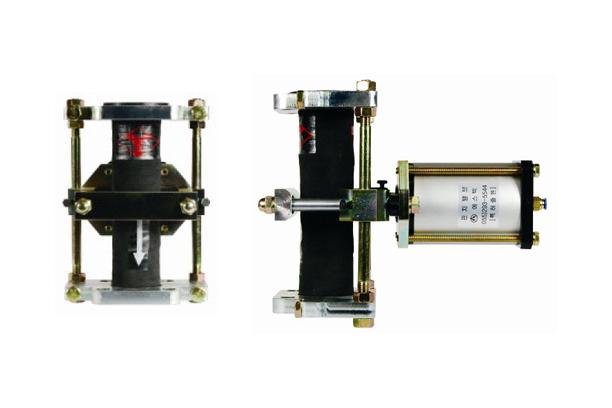

PINCH VALVE
Model Name
-
Series
PINCH VALVE
Data
-
Manufacturer information
provider logo
S-TECH

Auto shot valve, Auto ar valve, Filler valve

Problem with product info?
Update request
Manufacturer
S-TECH
Product Type
Machine
Brand
-
SKU
123502
Product Name
PINCH VALVE
Model Name
-
Size
-
Weight
-
Product Details

Specifications


SPC40A , SPC25A



Product Features


Characteristics

- This valve is normally open, Valve pipeline closes when air is supplied to the cylinder and vice versa. When connecting solenoid valve to air hose, be sure that the air in the cylinder should be completely discharged. Valve is normally used at air pressure of 5~9kg/cm2. It is possible to change rubber tube by unfastening four bolts and two nuts. It is very convenient compared with the existing valves.


Use

- It is assembled to the upper part of the tank of the shot air blasting equipment. It discharges the contaminated air form the tank before fill valve opens when shot ball is supplied to the tank.

S-TECH
Auto shot valve, Auto ar valve, Filler valve
S-TECH was established in 1989 as a manufacturer specializing in valves and parts for short air blasting equipment. Since then, it has been developing and supplying more convenient products that were previously entirely dependent on imports. We collaborate with numerous companies, including Hyundai Heavy Industries, Hyundai Mipo Dockyard, Hyundai Samho Heavy Industries, Hanwha Ocean, Samsung Heavy Industries, K Shipbuilding, Doosan Energy, and HSD Engine, among others. We continuously research and strive to provide better products, holding multiple patents and utility models. We will continue to strive to become a company that grows alongside our customers by supplying high-quality products with superior technology.
