Manufacturer
REELTEC
Product Type
Machine
Brand
-
SKU
137829
Product Name

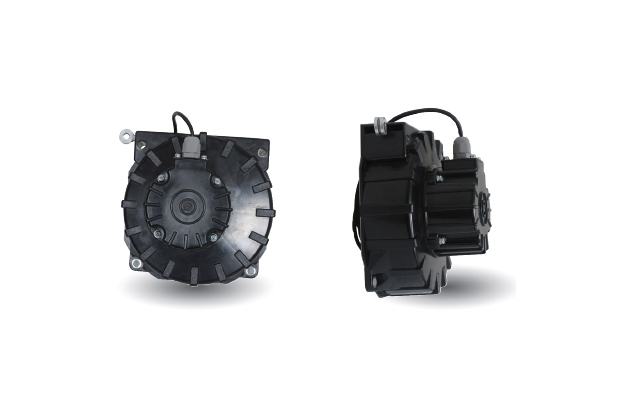

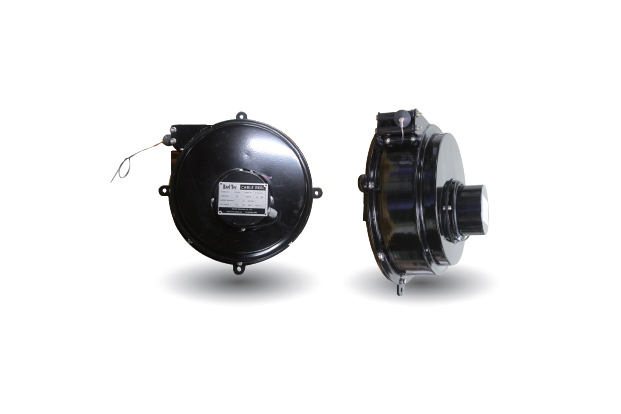

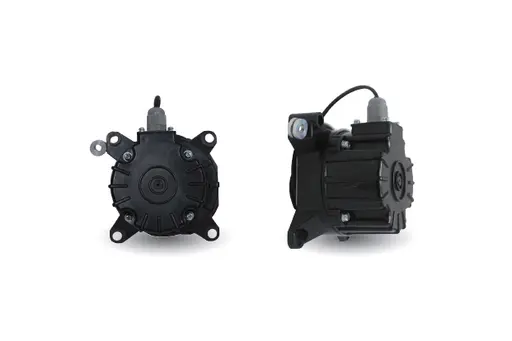

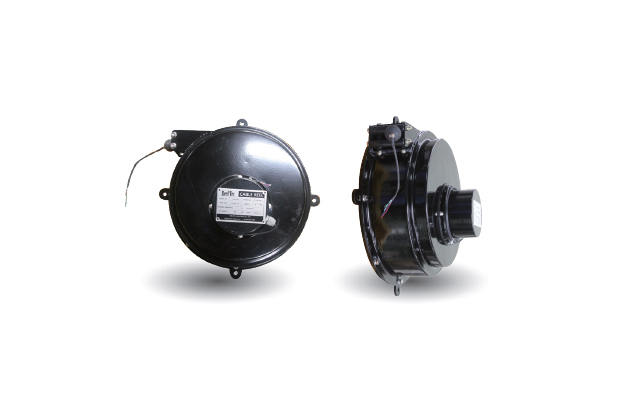

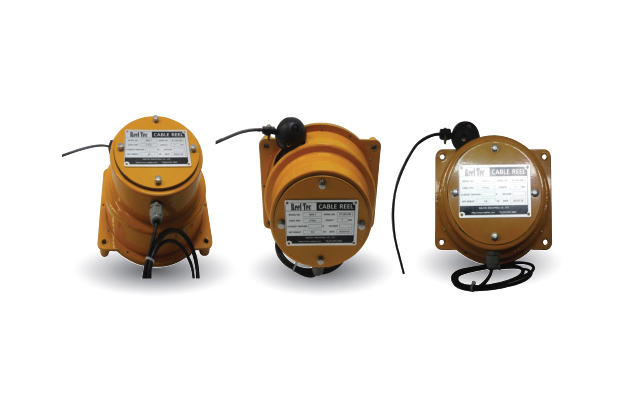

Stroke Sensor Cord Reel
Model Name
SR102, SR108, SR230, SR407, SR430
Size
-
Weight
-
Product Details
SR102
| Wire Spec. | Ø1 Stainless Wire |
|---|---|
| Wire Length : 2MR | |
| Potentiometer Specification | Total Resistance tolerance: 5 kΩ±5 % |
| Independent Linearity : ± 0. 25 % | |
| Power Rating : 2 W | |
| Temperature Coefficient Over Storage Temperature : ±50 p. p. m. /℃ | |
| Waterproof Grade | IP65 |
| Vibration Resistant | Vibration Frequency : 33.3Hz |
| Vibration Acceleration : 66.7ms | |
| Shock Withstand | 25g,17ms(Up & Down ,Left & Right, Front & Rear) |
| Temperature Range | -20 ℃~+70 ℃ |
| Weight | About 0.5 Kg |
SR108
| Wire Spec. | Ø1.5 Stainless Wire |
|---|---|
| Wire Length : 8MR | |
| Potentiometer Specification | Total Resistance tolerance: 5 kΩ±5 % |
| Independent Linearity : ± 0. 25 % | |
| Power Rating : 2 W | |
| Temperature Coefficient Over Storage Temperature : ±50 p. p. m. /℃ | |
| Waterproof Grade | IP65 |
| Vibration Resistant | Vibration Frequency : 33.3Hz |
| Vibration Acceleration : 66.7ms | |
| Shock Withstand | 25g,17ms(Up & Down ,Left & Right, Front & Rear) |
| Temperature Range | -20 ℃~+70 ℃ |
| Weight | About 1.2 Kg |
SR230
| Wire Spec. | Ø2 Stainless Wire |
|---|---|
| Wire Length : 30MR | |
| Potentiometer Specification | Total Resistance tolerance: 5 kΩ±5 % |
| Independent Linearity : ± 0. 25 % | |
| Power Rating : 2 W | |
| Temperature Coeffi cient Over Storage Temperature : ±50 p. p. m. /℃ | |
| Waterproof Grade | IP65 |
| Vibration Resistant | Vibration Frequency : 33.3Hz |
| Vibration Acceleration : 66.7ms | |
| Shock Withstand | 25g,17ms(Up & Down ,Left & Right, Front & Rear) |
| Temperature Range | -20 ℃~+70 ℃ |
| Weight | About 15.4 Kg |
SR407[Combined Stroke Sensor Reel and Cord Reel]
| Wire Spec. | 0.2sq*4C |
|---|---|
| Wire Length : 7MR | |
| Potentiometer Specification | Total Resistance tolerance: 5 kΩ±5 % |
| Independent Linearity : ± 0. 25 % | |
| Power Rating : 2 W | |
| Temperature Coeffi cient Over Storage Temperature : ±50 p. p. m. /℃ | |
| Waterproof Grade | IP65 |
| Vibration Resistant | Vibration Frequency : 33.3Hz |
| Vibration Acceleration : 66.7ms | |
| Shock Withstand | 25g,17ms(Up & Down ,Left & Right, Front & Rear) |
| Temperature Range | -20 ℃~+70 ℃ |
| Weight | About 3.5 Kg |
SR430[Combined Stroke Sensor Reel and Cord Reel]
| Wire Spec. | Ø0.2sq*4C |
|---|---|
| Wire Length : 30MR | |
| Potentiometer Specification | Total Resistance tolerance: 5 kΩ±5 % |
| Independent Linearity : ± 0. 25 % | |
| Power Rating : 2 W | |
| Temperature Coeffi cient Over Storage Temperature : ±50 p. p. m. /℃ | |
| Waterproof Grade | IP65 |
| Vibration Resistant | Vibration Frequency : 33.3Hz |
| Vibration Acceleration : 66.7ms | |
| Shock Withstand | 25g,17ms(Up & Down ,Left & Right, Front & Rear) |
| Temperature Range | -20 ℃~+70 ℃ |
| Weight | About 14.9 Kg |
