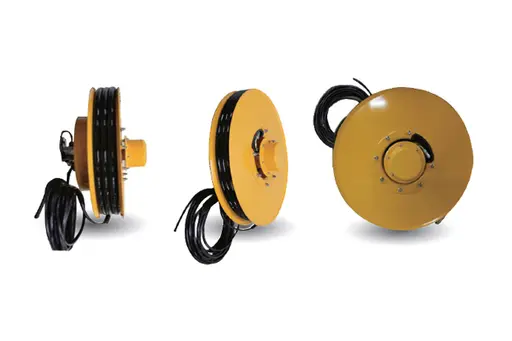

Multiple Hose Reel (HC Series)
Model Name
HC3-94-D450-X
Series
Reel For Crane
Data
-
Manufacturer information
provider logo
REELTEC

Reel manufacturer, Air reel, Gas reel, Hose reel, Hose for crane and more

Problem with product info?
Update request
Manufacturer
REELTEC
Product Type
Machine
Brand
-
SKU
137823
Product Name
Multiple Hose Reel (HC Series)
Model Name
HC3-94-D450-X, HC3-94-D500-X, HC3-94-D550-X, HC3-94-D600-X, HC3-94-D650-X
Size
-
Weight
-
Product Details

Specification

  • Integral Type duplex with Hose Reel and Cable Reel
  • Working hydraulic pressure with electric power and signal cable simultaneity.
  • Create various effect with one Reel
  • Apply power spring for smooth working at high pressure.
  • The cable have penetrated into hose for save cable.



MODEL NO. A B C D E F Available
HOSE
HOSE
LENGTH
REELING
LENGTH
WORKING
PRESSURE
(KG/cm²)
Available
CABLE
CABLE
LENGTH
Current
AMPS(A)
HC3-94-D450-X 450Ø 60 Ø280 120 54 240 3/8" 8.5M 8M 160
1.5sq*4c 13.5M
HC3-94-D500-X 500Ø 60 Ø280 120 54 240 3/8" 10M 9.5M 160
1.5sq*4c 15M
HC3-94-D550-X 550Ø 60 Ø340 120 54 240 3/8" 13M 12M 160
1.5sq*4c 18M
HC3-94-D600-X 600Ø 60 Ø340 120 54 240 3/8" 15.5M 14.5M 160
1.5sq*4c 20.5M
HC3-94-D650-X 650Ø 60 Ø340 120 54 240 3/8" 19M 18M 160
1.5sq*4c 24M

※ The Specifications are subject to change without notice for improvement.
