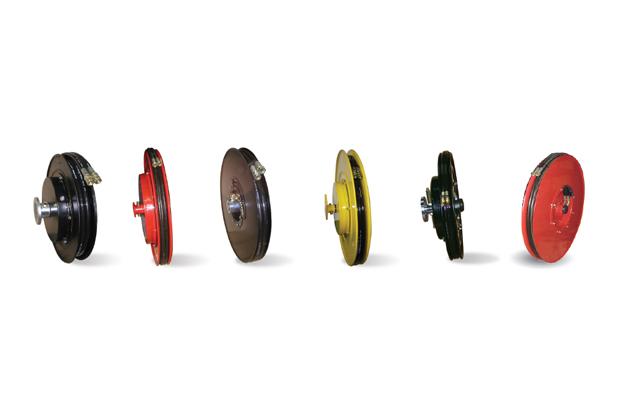

Self Retracting Hydraulic Hose Reel
Model Name
-
Series
Reel For Crane
Data
-
Manufacturer information
provider logo
REELTEC

Reel manufacturer, Air reel, Gas reel, Hose reel, Hose for crane and more

Problem with product info?
Update request
Manufacturer
REELTEC
Product Type
Machine
Brand
-
SKU
137815
Product Name
Self Retracting Hydraulic Hose Reel
Model Name
-
Size
-
Weight
-
Product Details

Uses : Crane-mobile and tower,fork lift trucks, and special vehicles.



Available hose Hose capacity Max Pressure Max Temperature
1/4inch~1/2inch 150feet/45meters 4350psi/300bar 176℉ (80℃)



Design & Structure

  • Heavy duty steel construction and without frame.
  • Full flow shaft and swivel(multi line)
  • Available Hose:Synflex hose
  • Special heat-treatment spring & without ratchet(Constant tension)
  • All (Outlet & inlet) connection threads are female NPT(Other threads can be furnished when you requested)
  • All materials are carbon steel as standard(Stainless,Aluminum and other materials are available when you requested)
  • Crane hose reels are furnished standard with synflex hose
  • Other specifications are available.



Painting : Powder Coat.
