Product Name

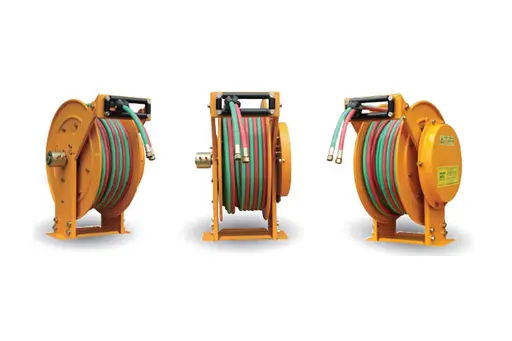

가스 용접 호스 릴 (GH Series)
Model Name
GH6-3, GH6-5, GH6-7, GH6-9, GH8-3, GH8-5, GH8-7, GH8-9
Size
-
Weight
-
Product Details
제품특징
- GAS를 이용한 용접 및 절단 작업시 사용
- 무겁고 취급이 어려운 GAS호스의 보관 및 작업에 최적
- RUBBER HOSE를 사용하여 우수한 내구성
- 이중후레임으로 안전하고 견고한 구조
- 4방향 가이드롤러의 안정적인 호스권취
- 고정식 수동핸들 기본장착(변경가능)
- 조선소, 제철소, 건설현장 및 모든 산업 현장에서 사용 가능
| MODEL NO. | HOSE CAPACITY | REEL DIMENSIONS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D | O.D | LEN GTH | A | B | C | D | E | F | G | H | X | Y | |
| Ø | Ø | MR | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| GH6-3 | 4.8 | 11.6 | 20 | 270 | 120 | 200 | 110 | 350 | 445 | 375 | 200 | 230 | 70 |
| GH6-5 | 4.8 | 11.6 | 30 | 300 | 150 | 200 | 110 | 380 | 475 | 410 | 220 | 260 | 70 |
| GH6-7 | 4.8 | 11.6 | 40 | 270 | 120 | 200 | 150 | 450 | 445 | 480 | 255 | 230 | 110 |
| GH6-9 | 4.8 | 11.6 | 50 | 300 | 150 | 200 | 150 | 500 | 475 | 535 | 285 | 260 | 110 |
| GH8-3 | 7.9 | 15 | 20 | 300 | 150 | 200 | 110 | 380 | 475 | 405 | 215 | 260 | 70 |
| GH8-5 | 7.9 | 15 | 30 | 300 | 150 | 200 | 150 | 450 | 475 | 480 | 255 | 260 | 110 |
| GH8-7 | 7.9 | 15 | 40 | 330 | 180 | 200 | 150 | 450 | 505 | 480 | 255 | 290 | 110 |
| GH8-9 | 7.9 | 15 | 50 | 330 | 180 | 200 | 150 | 500 | 505 | 535 | 285 | 290 | 110 |
※ 상기 사양은 제품 향상을 위하여 예고없이 변경될 수 있습니다.
