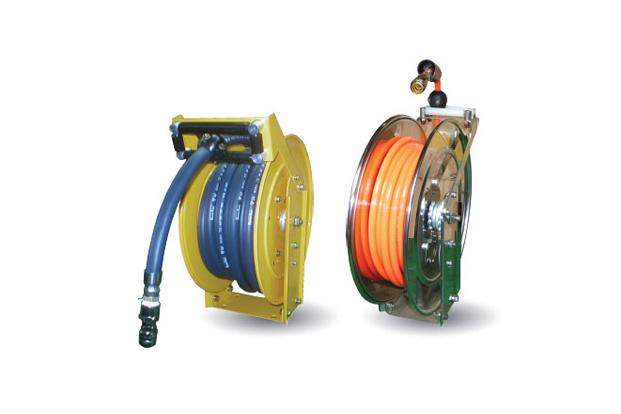

Description
Uses : For Air
Design & Structure
- Reels are all steel construction and compact design
- All bolted assembly without weldings
- Special heat-treatment spring & ratchet.
- 4-way roller assembly.
- Full flow shaft and swivel.
- Standard inlet 90° balanced pressure swivel joint(NBR Packing)
- All(Outlet & inlet) connection threads are female NPT(Other threads can be furnished when you request)
- All materials are carbon steel as standard(Stainless, Aluminum and other materials are available when you request)
- 'SN' SERIES reels are furnished standard with PVC HOSE.(Rubber hose is available when you requested.)
- Other specifications are available.
Painting : powder coat.
Specification
| Available Hose specifications | Max Pressure | Max Temperature | Rewind Type | Installation | ||
|---|---|---|---|---|---|---|
| Size(Inch) | Hose Material | Length(MR) | ||||
| 1/4inch~1/2inch | PVC(1T/B) | 10MR~30MR | 300psi/20bar | 50ºC | Spring | Floor, Wall, Ceiling |
| MODEL NO. | HOSE CAPACITY | REEL DIMENSIONS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D | O.D | LEN GTH | A | B | C | D | E | F | G | H | X | Y | |
| mm inch |
mm inch |
meter feet |
mm inch |
mm inch |
mm inch |
mm inch |
mm inch |
mm inch |
mm inch |
mm inch |
mm inch |
mm inch |
|
| SN6-1 | 6.5 1/4 |
13 0.51 |
10 30 |
130 5.1 |
70 2.8 |
170 6.7 |
110 4.3 |
300 11.8 |
145 5.7 |
330 13.0 |
180 7.1 |
85 3.3 |
70 2.8 |
| SN6-2 | 6.5 1/4 |
13 0.51 |
15 50 |
130 5.1 |
70 2.8 |
170 6.7 |
110 4.3 |
300 11.8 |
145 5.7 |
330 13.0 |
180 7.1 |
85 3.3 |
70 2.8 |
| SN6-3 | 6.5 1/4 |
13 0.51 |
20 70 |
130 5.1 |
70 2.8 |
170 6.7 |
110 4.3 |
300 11.8 |
145 5.7 |
330 13.0 |
180 7.1 |
85 3.3 |
70 2.8 |
| SN9-1 | 9.5 3/8 |
17 0.65 |
10 30 |
130 5.1 |
70 2.8 |
170 6.7 |
110 4.3 |
300 11.8 |
145 5.7 |
330 13.0 |
180 7.1 |
85 3.3 |
70 2.8 |
| SN9-2 | 9.5 3/8 |
17 0.65 |
15 50 |
130 5.1 |
70 2.8 |
170 6.7 |
110 4.3 |
300 11.8 |
145 5.7 |
330 13.0 |
180 7.1 |
85 3.3 |
70 2.8 |
| SN9-3 | 9.5 3/8 |
17 0.65 |
20 70 |
130 5.1 |
70 2.8 |
170 6.7 |
110 4.3 |
300 11.8 |
145 5.7 |
330 13.0 |
180 7.1 |
85 3.3 |
70 2.8 |
| SN13-1 | 12.7 1/2 |
21 0.81 |
10 30 |
210 8.3 |
70 2.8 |
170 6.7 |
110 4.3 |
300 11.8 |
230 9.1 |
330 13.0 |
180 7.1 |
155 6.1 |
70 2.8 |
| SN13-2 | 12.7 1/2 |
21 0.81 |
15 50 |
210 8.3 |
70 2.8 |
170 6.7 |
110 4.3 |
350 13.8 |
230 9.1 |
385 15.2 |
210 8.3 |
155 6.1 |
70 2.8 |
| SN13-3 | 12.7 1/2 |
21 0.81 |
20 70 |
210 8.3 |
70 2.8 |
170 6.7 |
110 4.3 |
350 13.8 |
230 9.1 |
385 15.2 |
210 8.3 |
155 6.1 |
70 2.8 |
※The specifications are subject to be changed without previous notice for improvement.
