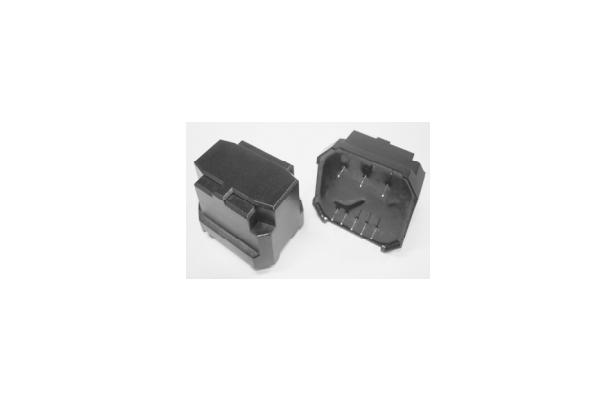

MES P Series(25W) Explanation
• DC - DC CONVERTER
• ON - BOARD TYPE SMPS
• WIDE INPUT RANGE
• PROTECTION ( O.V.P / O.C.P / S.C.P)
• THERMAL SHUTDOWN
• ISOLATED OUTPUT
MODEL NUMBER | INPUT(V) | OUTPUT(V) | MODEL TYPE | MODEL SIZE |
MES2410P | 120~375VDC |
24V/1.0A |
Single | 46X36.5XH27(mm) |
General Description
MES2410P is a DC/DC converter which can be used to supply DC output from a commercial power supply (85 to 265 VAC). Using these module enable simple, easy drive of microcomputers, LEDs, and other electronic components without using a transformer.
It also allows set PCBs to be kept compact and lightweight, with extremely few attachments. It can accommodate the 85VAC~265VAC power supplies used as household power supplies.
Application
โช Small multi-purpose power supply
โช Stand-by power supply aimed at low power consumption when loaded light
โช Insulated-type DC-DC converted
Features
โช Wide Input Range : FREEVOLT (AC 85V ~ 265V)
โช A switching power supply can be made easily by adding simply external circuit
โช Permits reduction of power consumption at low loads(when in stand-by)
โช Able to deal with inputs of worldwide areas
โช Ultra-compact size attained by application of high-density mounting technique
โช Application of the unique molding technique features
Compliance with various safety regulations from the compact size
Humming is prevented when intermittent oscillation
โช Over Temperature Protection
โช Output Short Circuit Protection
โช Over Load Protection
Electrical Characteristics
