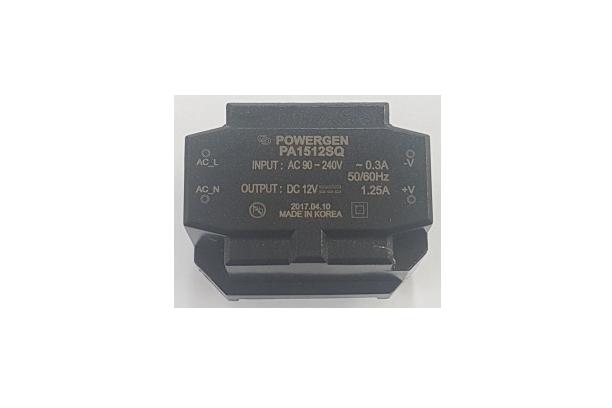

PA-SQ Series Explanation

• AC - DC CONVERTER

• ON - BOARD TYPE SMPS

• WIDE INPUT RANGE

• PROTECTION ( O.V.P / O.C.P / S.C.P)

• THERMAL SHUTDOWN

• NO LOAD POWER CONSUMPTION

• ISOLATED OUTPUT

• SMALL MULTI-PURPOSE POWER SUPPLY

Special Features

• Small multi-purpose power supply

• Wide Input Range (AC85V~265V)

• Isolated output

• Short circuit protection

• Over voltage protection

• Thermal shutdown

• Low standby-power

Electrical Characteristics

Notes

(1) For cases where the conformance to various safety spec is required, input voltage and frequency range will be 85VAC ~265VAC, 60Hz/50Hz.
