MES P Series(25W) Explanation
• DC - DC CONVERTER
• ON - BOARD TYPE SMPS
• WIDE INPUT RANGE
• PROTECTION ( O.V.P / O.C.P / S.C.P)
• THERMAL SHUTDOWN
• ISOLATED OUTPUT
| MODEL NUMBER | INPUT(V) | OUTPUT(V) | MODEL TYPE | MODEL SIZE |
| MES0550P | 120~375VDC |
5V/5.0A |
Single | 46X36.5XH27(mm) |
General Description

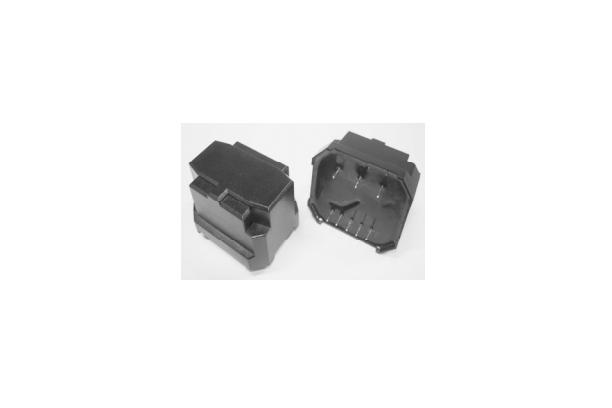

MES0550P is a DC/DC converter which can be used to supply DC output from a commercial power supply (85 to 265 VAC). Using these module enable simple, easy drive of microcomputers, LEDs, and other electronic components without using a transformer.
It also allows set PCBs to be kept compact and lightweight, with extremely few attachments. It can accommodate the 85VAC~265VAC power supplies used as household power supplies
Application
▪ Small multi-purpose power supply
▪ Stand-by power supply aimed at low power consumption when loaded light
▪ Insulated-type DC-DC converted
Features
▪ Wide Input Range : FREEVOLT (AC 85V ~ 265V)
▪ A switching power supply can be made easily by adding simply external circuit
▪ Permits reduction of power consumption at low loads(when in stand-by)
▪ Able to deal with inputs of worldwide areas
▪ Ultra-compact size attained by application of high-density mounting technique
▪ Application of the unique molding technique features
Compliance with various safety regulations from the compact size
Humming is prevented when intermittent oscillation
▪ Over Temperature Protection
▪ Output Short Circuit Protection
▪ Over Load Protection
Electrical Characteristics
