Manufacturer
PLOTFACILITIES
Product Type
Machine
Brand
-
SKU
140254
Product Name
Industrial and research chiller
Model Name
PF-1A, PF-2A, PF-3A, PF-5A, PF-7.5A, PF-10A, PF-15A, PF-20A, PF-25A, PF-30A
Size
-
Weight
-
Product Details
| Division | PF-1A | PF-2A | PF-3A | PF-5A | PF-7.5A | PF-10A | PF-15A | PF-20A | PF-25A | PF-30A |
| Classification of title(HP) | 1 | 2 | 3 | 5 | 7.5 | 10 | 15 | 20 | 25 | 30 |
| Background view (entry, exit) | 15A | 25A | 32A | 40A | 50A | |||||
| Compressor output(kW) | 0.75 | 1.5 | 2.25 | 3.75 | 5.6 | 7.5 | 11.2 | 15 | 22.5 | 30 |
| Cooling capacity(at20℃, Kcal/h) | 2,800 | 5,000 | 7,500 | 12,500 | 18,750 | 25,000 | 37,500 | 50,000 | 62,500 | 75,000 |
| Pump output (Kw) |
0.37~1.1 | 1.1~2.2 | 2.2~4 | |||||||
| Pump maximum volume(M) | 10~35 | 10~35 | 10~50 | |||||||
| Pump max flow(L/min) | 20~100 | 100~200 | 200~400 | |||||||
| How to display settings | Digital controller | |||||||||
| Safety | Low level alarm, high pressure/low pressure alarm, current overload cut-off, reverse phase prevention High temperature/low temperature alarm abnormality, water flow detection abnormality, freeze protection function, wireless remote control |
|||||||||
| Tank Capacity(L) | 25 | 50 | 70 | 160 | 160 | 220 | 270 | 380 | 380 | 490 |

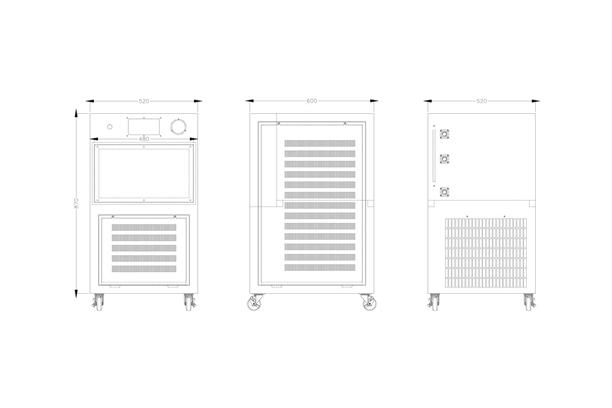

| Size LxWxH(mm) | 600x 520x 870 |
700x 600x 1,000 |
900x 700x 1,100 |
1,340x 650x 1,400 |
1,540x 750x 1,450 |
1,540x 800x 1,450 |
1,770x 900x 1,720 |
2,070x 1,000x 1,775 |
2,630x 900x 1,775 |
2,930x 1,000x 1,815 |
| Total Power Consumption (Kw/h) |
2.5 | 3.3 | 4.9 | 4.5 | 7.1 | 9.4 | 15 | 18.7 | 28 | 35.5 |
| Power Specifications(V) | AC1Φ 220V 50/60Hz |
AC1Φ 220V 50/60Hz AC3Φ 220/380/480V 50/60Hz |
AC3Φ 220/380/440V 50/60Hz | |||||||
※ The appearance and specifications of all products are subject to change without notice. (Option: ±0.1℃ temperature control order production)
More products
Machine manufacturing for semiconductor manufacturing and machine manufacturing for display manufacturing
PLOTFACILITIES is a semiconductor equipment specialized company launched as SK Hynix's in-house venture SPIN OFF company.

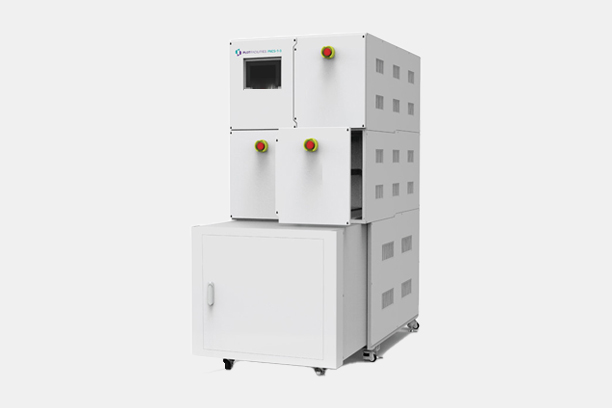

Based on our know-how accumulated in the field for a long time, we have put it in the world of 'PNCS', a parallel semiconductor chiller equipment that reflects the needs of the field.
