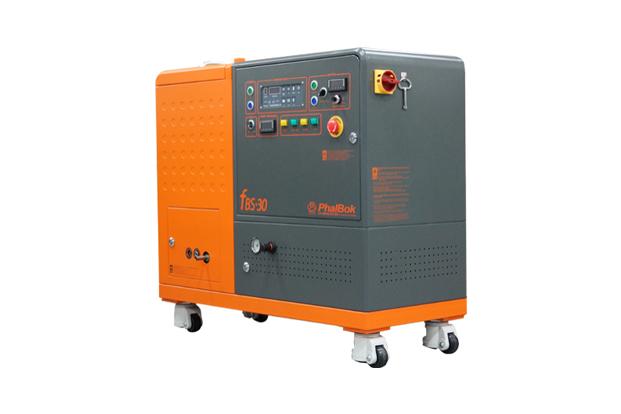

product Image
Tank (FBS Series)
Model Name
FBS 30
Series
Tank
View All
Data
-
Manufacturer information
provider logo
PHAL BOK SYSTEM

Hot Melt Applicator System manufacturer, Injection System and more

Problem with product info?
Update request
Manufacturer
PHAL BOK SYSTEM
Product Type
Machine
Brand
-
SKU
137380
Product Name
Tank (FBS Series)
Model Name
FBS 30
Size
-
Weight
-
Product Details

FBS-SERIES are composed of 2-stage gear pump units. They melt hot-melt adhesive or thermoplastic resin, which is mixed with N2 Gas and then discharged. This unit has a servo motor which is designed to have a constant number of revolutions and a stable discharge rate.



Spec

Workable viscosity 50,000 CPS
Capacity of Tank 30 Kg(66.1 lbs)
MELT RATE 25 Kg /hr
Maximum allowable working temperature Room temperature -230 ℃ (High temperature 250 ℃) (OPERATING TEMPERATURE RANGE)
temperature anomaly ± 1 ℃
PUMP Pressure 0 - 70 Kgf/㎠ (MAX)
Hose to be Used 1 - 6 EA (OPTIONAL)
Electrical Power 3φ , 220V, Maximum 33A, MAX 8400W(MELT UNIT)
MELT UNIT Weight 150 Kg
Operate GAS Industrial Nitrogen GAS , Carbon dioxide GAS
