Description
Description

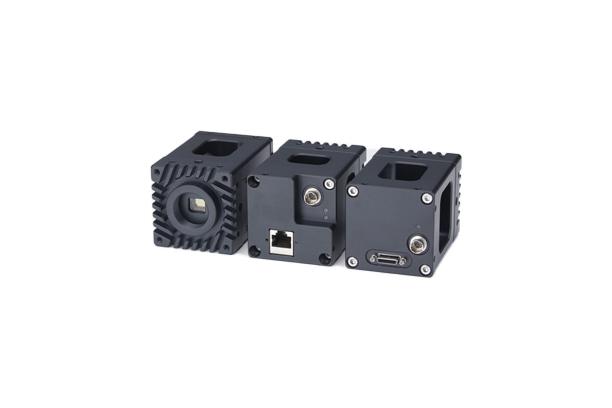

SWIR Camera
Features
0.3M, 1.3M SWIR sensor adopted camera with 400nm~1700nm wavelength
GigE Vision, CameraLink, USB3 Vision line up
Product Lineup
| Model No. | Monochrome/Color | Resolution | Frame Rate | Effective Pixels (H x V, pixels) |
Sensor Size | Cell Size (H x V, μm) |
Sensor | Lens Mount | Notes |
|---|---|---|---|---|---|---|---|---|---|
| STC-LBS34POE-SWIR | Monochrome | 0.3M | 240fps | 640 × 512 | 1/4" | 5 × 5 | IMX991 | C Mount | GigE Vision PoE Compatible |
| STC-LBS132POE-SWIR | 1.3M | 84fps | 1280 × 1024 | 1/2" | IMX990 | ||||
| STC-LBS34CL-SWIR | 0.3M | 258fps | 640 × 512 | 1/4" | IMX991 | CameraLink PoCL Not Compatible | |||
| STC-LBS132CL-SWIR | 1.3M | 134fps | 1280 × 1024 | 1/2" | IMX990 | ||||
| STC-LBS34U3V-SWIR | 0.3M | 258fps | 640 × 512 | 1/4" | IMX991 | USB3 Vision | |||
| STC-LBS132U3V-SWIR | 1.3M | 134fps | 1280 × 1024 | 1/2" | IMX990 |
* CameraLink and USB3 Vision models are schedule to be released in 2022
<Export and Trade Control Laws>
SWIR cameras are classed as a commodity (or technology) requiring acquisition of export permission in accordance with foreign exchange and overseas trade control laws.
When the SWIR cameras are to be taken outside of Japan, adopt the required procedures such as application for export permission by the Japanese government.
Accessories
 |
Screw-fastened GigE Cables OMRON SENTECH has made available a line of optional screw-fastened cables in response to many requests for such cables when using GigE Vision cameras in the FA field.
|
| Model No. | Length | Notes |
|---|---|---|
| CAB-GE-03-RB | 3m | Robot Cable |
| CAB-GE-05-RB | 5m | |
| CAB-GE-10-RB | 10m | |
| CAB-GE-15-RB | 15m |
 |
USB<->USB3.0 micro B cables used on USB3.0 models. |
| Model No. | Length | Notes |
|---|---|---|
| NU3MBASU3S-2m | 2m | Standard cable |
| NU3MBASU3S-3.5m | 3.5m | |
| NU3MBASU3S-5m | 5m | |
| CAB-USB3-02 | 2m | |
| CAB-USB3-03 | 3.5m | |
| CAB-USB3-05 | 5m | |
| CAB-USB3-07 | 7m | |
| CAB-USB3-10 | 10m | High speed tranfering cable |
| NU3MBASU3B-2m | 2m | Robot cable |
| NU3MBASU3B-3.5m | 3.5m | |
| CAB-USB3-02-RB | 2m | |
| CAB-USB3-03-RB | 3.5m | |
| CAB-USB3-05-RB | 5m | |
| CAB-USB3-07-RB | 7m |
 |
AC ADAPTER AC adapters for camera power supply. |
| Model No. | Supported Models | Connector Specifications | IN | OUT |
|---|---|---|---|---|
| UA310-1210 | SWIR camera | DC jack | 100 - 240 VAC | 12V / 1A |
| CAB-CON-M | GigE Vision model | DC jack-6pin conversion cable | ||
| CAB-CON-CL | Camera Link model | DC jack-6pin conversion cable | ||
