Camera Link Remote Head Model

Model Name

STC-MBR33PCL-C3

Series

Camera Link

View AllView All Series

Data

Manufacturer information

OMRON SENTECH

DVI, MIPI, USB, Camer Link and more

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

OMRON SENTECH

Product Type

Machine

Brand

SKU

140170

Product Name

Camera Link Remote Head Model

Model Name

STC-MBR33PCL-C3, STC-MCR33PCL-C3, STC-MBR33PCL-R3, STC-MCR33PCL-R3, STC-RHB33PCL-U, STC-RBS43PCL-SM12, STC-RCS43PCL-SM12, STC-RBS43PCL-UM12, STC-RCS43PCL-UM12, STC-RBS163PCL-SM12, STC-RCS163PCL-SM12, STC-RBS163PCL-UM12, STC-RCS163PCL-UM12

Size

Weight

Product Details

Description

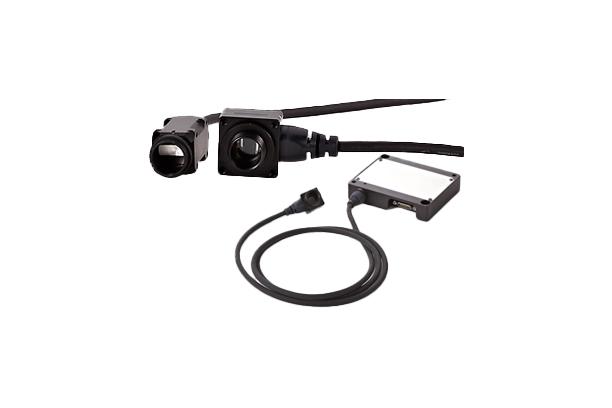

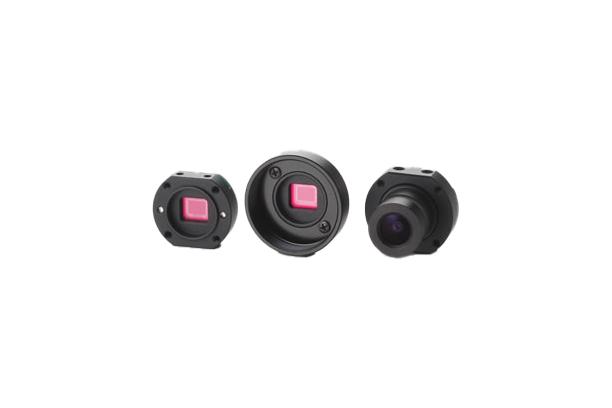

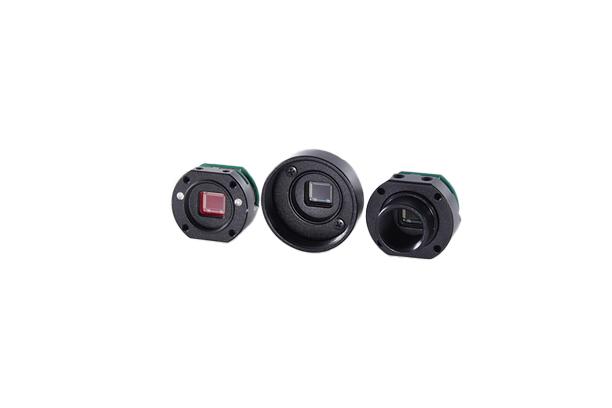

Ultra Small Remote Head Camera Link Camera.

Features

Set up in the narrow spaces available by separating the sensor and head.
Installation on the moving parts becoming able by enhancing the durability of the cable.

Product Lineup

The model No. with ■ background in below list, will be discontinued in end of March 2025 due to discontinuation of Sony's CCD.

Model No.	Monochrome/Color	Resolution	Frame Rate	Effective Pixels (H x V, pixels)	Sensor Size	Cell Size (H x V, μm)	Sensor	Lens Mount	Notes
STC-MBR33PCL-C3	Monochrome	VGA	94.78fps	648 x 494	1/3"	7.4 x 7.4	ICX424AL	M10.5(P=0.5)
STC-MCR33PCL-C3	Color		94.78fps	648 x 494	1/3"	7.4 x 7.4	ICX424AQ	M10.5(P=0.5)
STC-MBR33PCL-R3	Monochrome		94.78fps	648 x 494	1/3"	7.4 x 7.4	ICX424AL	M10.5(P=0.5)
STC-MCR33PCL-R3	Color		94.78fps	648 x 494	1/3"	7.4 x 7.4	ICX424AQ	M10.5(P=0.5)
STC-RHB33PCL-U	Monochrome		94.78fps	648 x 494	1/3"	7.4 x 7.4	ICX424AL	M10.5(P=0.5)
STC-RBS43PCL-SM12	Monochrome	0.4M	523.6fps	720 x 540	1/2.9"	6.9 x 6.9	IMX287	S Mount	Cable from rear of head Cable length: 2.5m
STC-RCS43PCL-SM12	Color								Cable from rear of head Cable length: 2.5m
STC-RBS43PCL-UM12	Monochrome								Cable from top of head Cable length: 2.5m
STC-RCS43PCL-UM12	Color								Cable from top of head Cable length: 2.5m
STC-RBS163PCL-SM12	Monochrome	1.6M	155fps	1440 x 1080		3.45 x 3.45	IMX273		Cable from rear of head Cable length: 2.5m
STC-RCS163PCL-SM12	Color								Cable from rear of head Cable length: 2.5m
STC-RBS163PCL-UM12	Monochrome								Cable from top of head Cable length: 2.5m
STC-RCS163PCL-UM12	Color								Cable from top of head Cable length: 2.5m
