NAMJOO

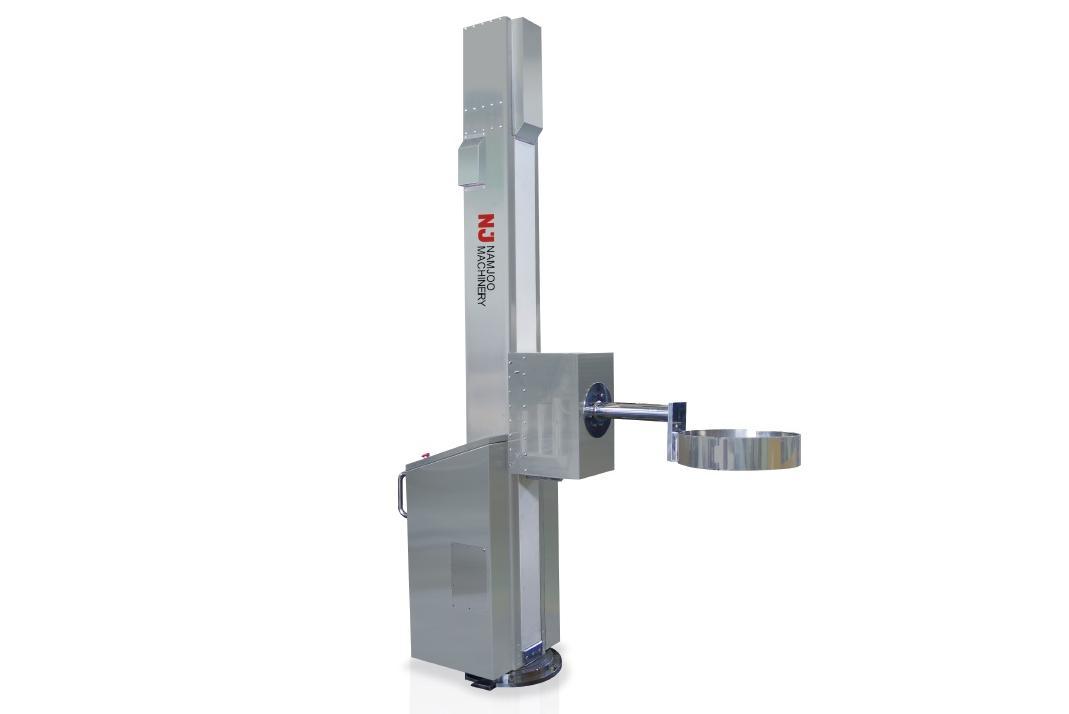

Drum Lift

Model

Series

Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.

Description

제품설명 description
■ 본 장비는 하부회전식이며 상/하로 동작하고 Drum을 타정기 상부에 이동 장착하는 장비입니다.
■ 혼합된 제품을 Drum으로 이송함으로써 제품의 분리됨을 방지하고 제품을 외부에 노출하지 않으므로 오염을 최소화 합니다.
■ 설치공간을 최소화하고 안전을 최대한 고려하였습니다.

기술규격서TECHNICAL SPECIFICATION
ㆍSTANDARD

DIMENSION	Total W600D1000H3300 mm Discharge valve Ø 180
LIFT CAPACITY	Weight * 300kg/Max. Lift height * About 2500 mm
MATERIALS	Lift frame * sts304 8t Rotate box * sts304 12t Cover * sts304 1.5t
SAFETY	Drum band lock pin Proximity Switch stop
POWER	Lift motor * 0.75kw Rotate motor 0.2kw
ELECTRIC	Control box * sts304 Lift motor up & down Rotate motor on/off
