NAMJOO

NAMJOO

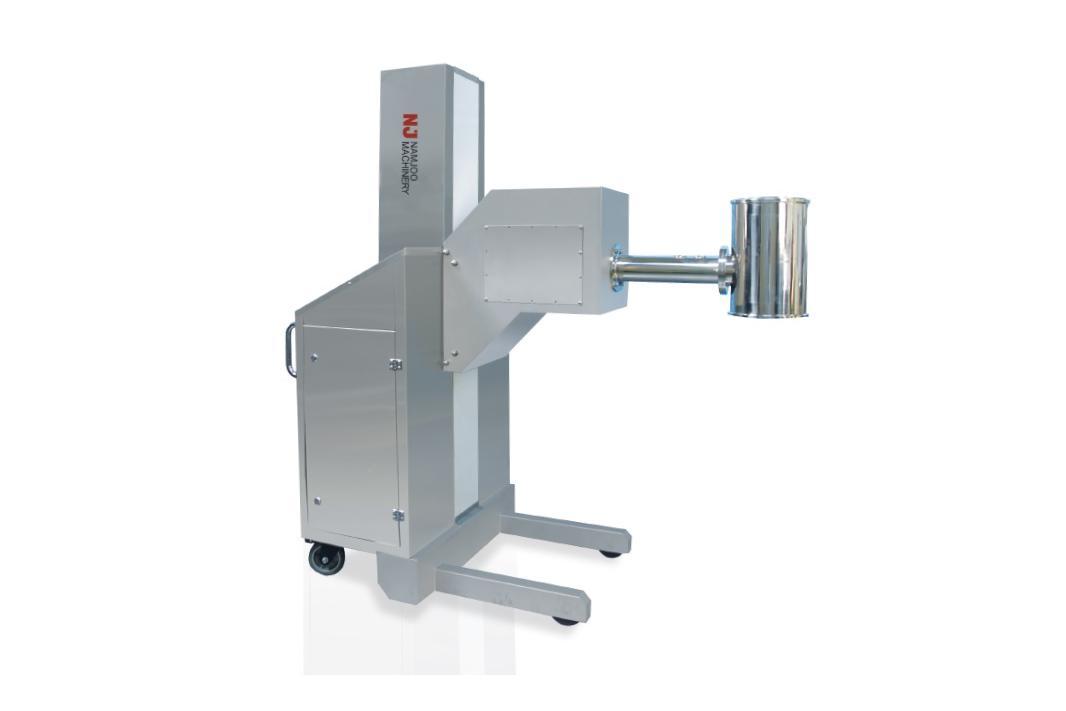

Line Oscillator

Model

Series

-


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.


Description

제품설명 description

■ 본 장비는 제품을 외부에 노출하지 않고 습식과 건식을 정립할 수 있는

    장비입니다.
■ 본 장비의 특성은 상/하로 동작하며 하부에는 회전식 바퀴를 설치하여

    이동이 편리합니다.
■ 본 장비는 Screen Mesh를 선택함으로써, 습식과 건식의 정립을

    할 수 있는 장비입니다.
■ 유동층 건조기의 Basket과 정립기, 혼합기의 Container를 설치하여

    정립합니다.
■ c-GMP에 대비한 장비입니다.





기술규격서TECHNICAL SPECIFICATION
ㆍSTANDARD

DIMENSION Total W900*D1830*H2200 mm
Head Ø285 * H400 mm
MATERIALS Lift frame * ss400 beam
Head * sts316L
Mesh screen sts316L
Impeller & shaft * sts316L
Cover * sts304 1.5t
POWER Lift motor * 380V*0.75k
Oscillator motor * 380V * 2.2k
ELECTRIC Head up & down control
Impeller speed control
Control Box * sts304
