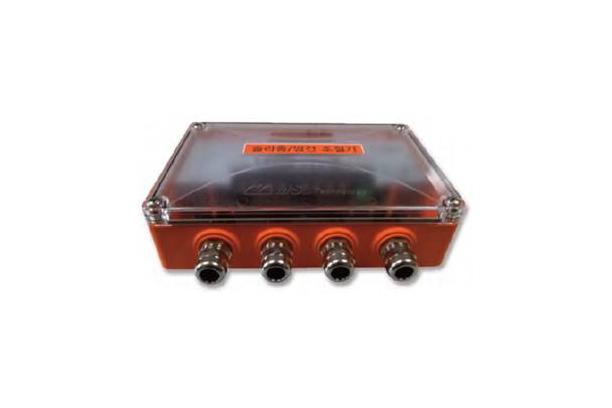

product Image
Power-related Equipment
Model Name
MSL-SBM Series
Series
Power-related Equipment
Data
-
Manufacturer information
provider logo
MSL TECHNOLOGY

Sea wind link system, Monitoring system, Beacon, etc.

Problem with product info?
Update request
Manufacturer
MSL TECHNOLOGY
Product Type
Machine
Brand
-
SKU
122950
Product Name
Power-related Equipment
Model Name
MSL-SBM Series
Size
-
Weight
-
Product Details

SBM series are organized for maximizing the charging efficiency by solar power system.
It has reverse polarity protection circuit and system of auto-switching to floating charge when it's fully charged. It is organized for preventing light-out of lantern by the separation control part and power supplying part of SBM.

The product includes temper sensor inside for preventing overheating. If the internal temperature is higher than the set point, system will stop the charge-discharge control for product protection. The system will restart charge-discharge when the internal temperature is lower than the set point. Simple internal wiring (no electrical wire); applied the LCD panel. Supporting the monitoring function by RS232


Features

- Input voltage : under 40V
- Floating charge voltage : DC 13.5V ~ 15.5V
- Max charge voltage : DC 15.5V
- Max charge-discharge current : 30A(10A/15A/20A/25A)
- Rated voltage : 12V/24V
- No-load current : under 40mA (DC 12V)
- Over discharge cut-off voltage : DC 9V ~ 11V
- Resume discharge voltage : DC 9V ~ 11V
- Input voltage : under 40V
- Floating charge voltage : DC 13.5V ~ 15.5V
- Max charge voltage : DC 15.5V
- Max charge-discharge current : 30A(10A/15A/20A/25A)
- Rated voltage : 12V/24V
- No-load current : under 40mA (DC 12V)
- Over discharge cut-off voltage : DC 9V ~ 11V
- Resume discharge voltage : DC 9V ~ 11V


Monitoring Data

- Solar power voltage (V)
- Battery voltage (V)
- Charge-discharge current(A)
- Output voltage(V)




SPECIFICATIONS

Electrical Characteristic

Input Voltage< 35V
Floating charge VoltageDC 13.5V ~ 15.5V(Changeable)
Max charge VoltageDC 15.5V(Chargeable)
Max charge-discharge Current10A, 15A, 20A, 25A, 30A
Rated VoltageDC 12V/24V
No-load currentunder 40mA(DC 12V)
Over charge cut-off VoltageDC 9V ~ 11V(Changeable)
Resume discharge VoltageDC 9V ~ 11V(Changeable)

Environment performance

Operating temperature

-30℃ ~ +80℃
Body

IP-66(NEMA4X/KS C IEC 60529)

Communication environment

Transfer rate9,600bps
Transfer period<2 Second
