New concept of drug infusion pump that does not need distinction between Infusion & Syringe



Anyfusion H-100 (Horizon Type)

Infusion Pump and syringe pump are

Integrated into one device : Cylinder Pump



1. Truly Precise

- Real-time precise injection for maximum 72 hrs within ± deviation in all range



2. Truly Safe

- Automatic safety lock / Alarm Function

- Free flow, Startup delay / InadvertentㆍAccidental Bolus / Shiphoning Phenomenon prevention

- Minimize the risk of infection and contamination



3. Truly Easy

- Directly connect to the container

  · No need to diverge

  · dispense drug

- No need to distinguish the use of infusion pump or Syringe pump depending on uses and functions

- Unrestricted use in place or height (Operating room, Ward, etc.)

- Auto priming

- Capable of PCA (Patient Controlled Analgesia) function

- Minimize human workload in drug injection

- Smart stacking structure maximizes space utilization

- minimization of discarded drug & medical disposables (syringe, container, etc.)







Specification

Product name	Cylinder pump
Model name	Anyfusion H-100
Flow rate	0.1 ~ 999.9 ml/hr
Flow rate accuracy	±2%
VTBI selector, ml	0.1 ~ 9999ml
Total Volume	0.01 ~ 9999ml
KVO rate	0.1 ~ 5 ml/hr

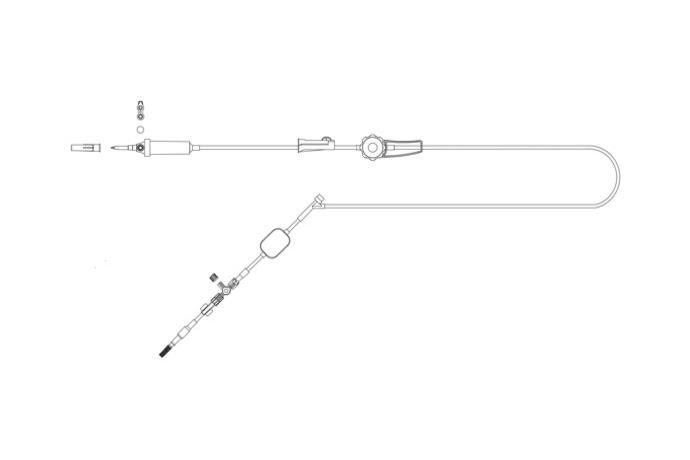

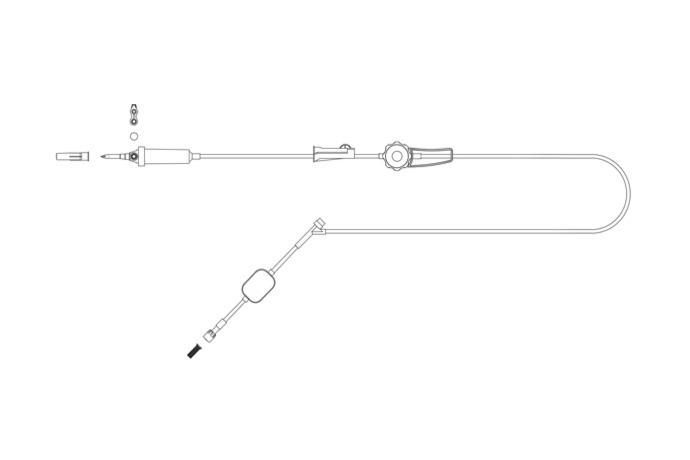

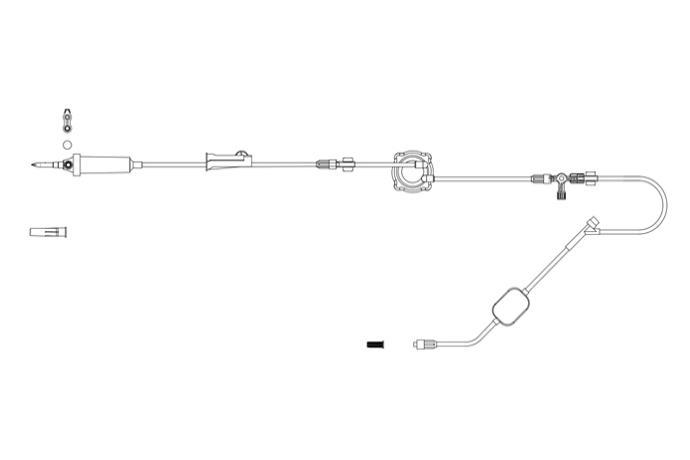

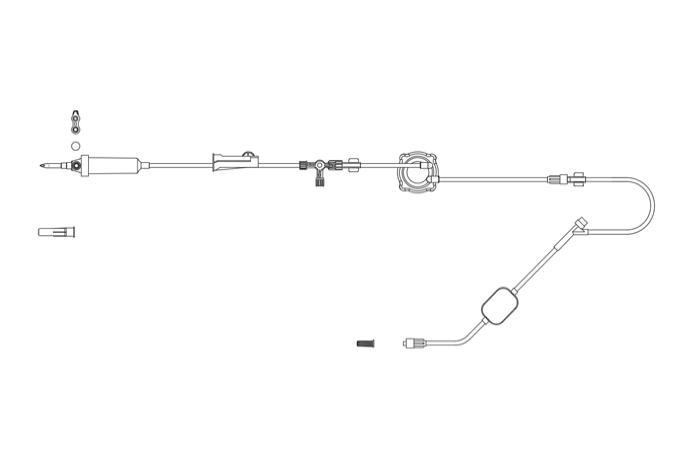

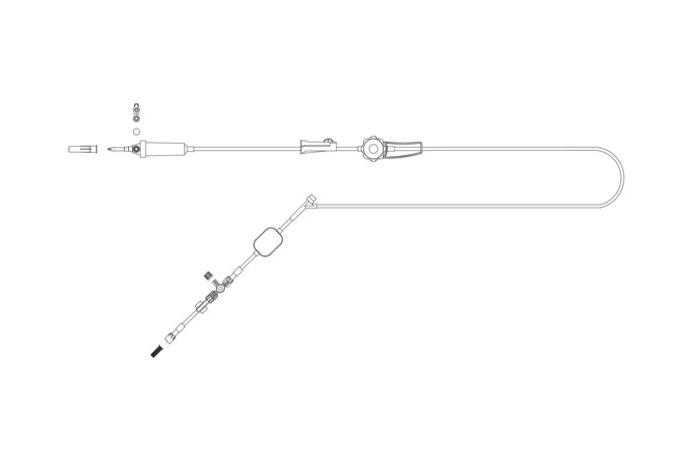

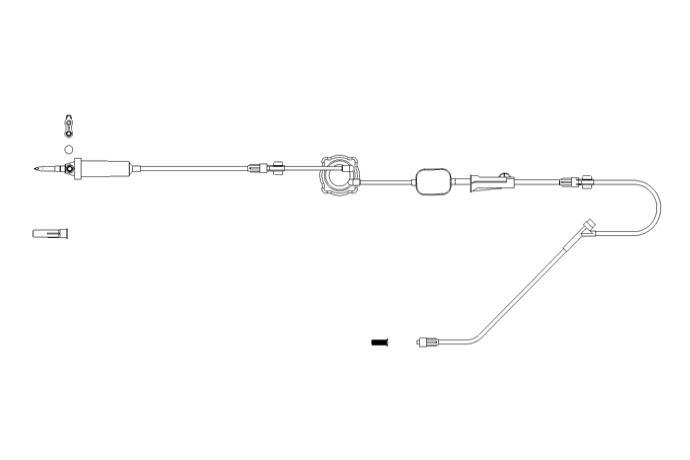

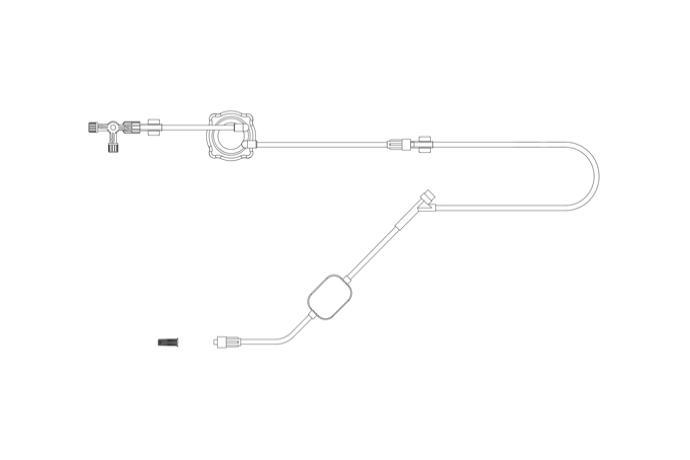

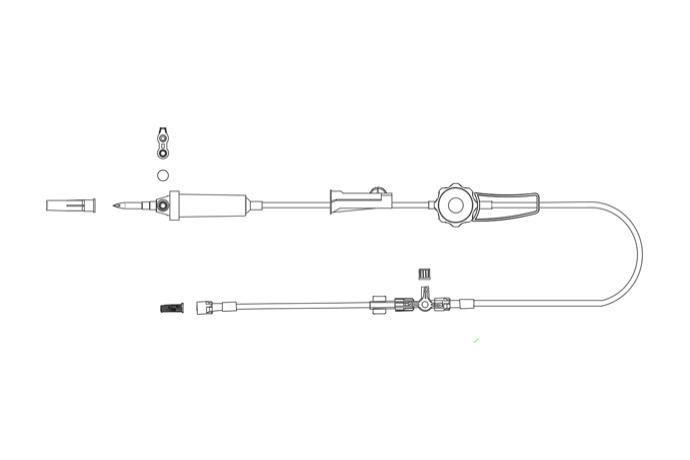

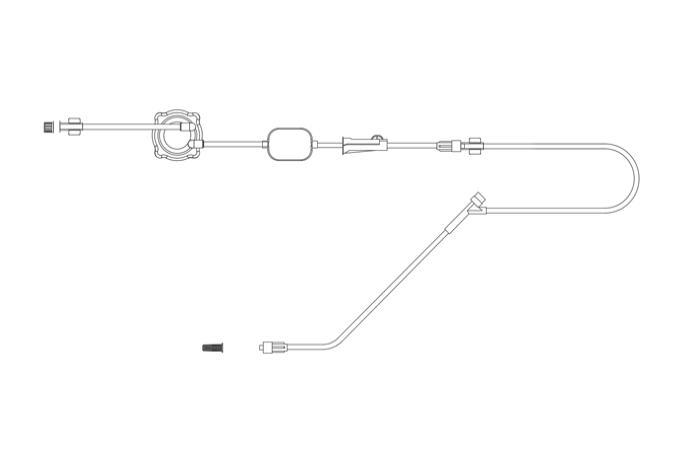

IV set	Compatible with any brand of IV sets (Compatible with installed micro filter 0.2~5.0um)
Purge rate, ml/hr	999.9 ml/hr
Bolus rate, ml/hr	999.9 ml/hr(default), 50 ~ 999.9 ml/hr
Bolus volume	0.1 ~ 99.9ml
Occlusion pressure	150 ~ 750 mmHg
Display	4.3" TFT-LCD (Resolution : 480 x 272)
Alarm	- Infusion completed alarm - Start reminder alarm - Input time expired alarm - Low battery alarm - No battery alarm - Depleted battery alarm - Upstream occlusion alarm - Downstream occlusion alarm - Air-in-line alarm - Door open alarm - System malfucion alarm - Cylinder detached alarm
Power	AC100 ~ 240V, 50/60Hz / Fuse : 250V, 1.6A
Batter type	Rechargeable Li-ion
Battery life	Approx, 8hrs at 100ml/h
Recharge time	Approx. 5hrs
Power consumption	Max. 75VA
Protection type	- Protection from electric shock : Class 1 - Protection capacity for electric shock : Type CF - Protection from liquid infiltration : IPX2
Dimension	22(W) x 145(D) x 96(H)mm
Weight	Approx 1.9kg
Operating condition	- Temperature : 10~40℃ - Humidity : 30~75% - Atmospheric pressure : 700 ~ 1,060hpa
Storage condition	- Temperature : -20~60℃ - Humidity : 10~95% - Atomosheric pressure : 650 ~ 1,060 hpa
Accessories	Syring holder, Pole clamp, AC power cord, Operator manual
