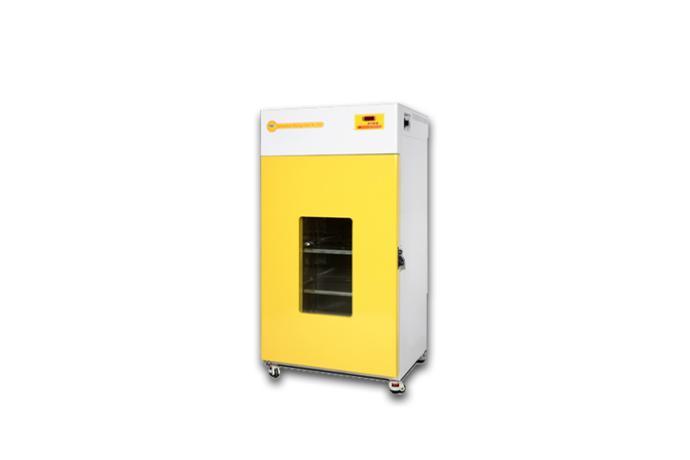

Product Name Drying Oven
Model MDM-0212/0213
Series Physical & Chemical appliances
Catalog
Product Description

Dimensions
760(W) x 650(D) x 950(H)mm





Digital PID controller : reliable precision temp. control & easy to use

Tempered inner glass door : easy to observation

Backup function (setting remains when electricity fails)

Overheat prevention & overload circuit breaker

GE motor : suitable for high temp. and long operation

Special motor : rapid dry & reliable equal temp. distribution

Quiet and vibration-less design



Item No.MDM-0212MDM-0213
ModelKL-45SKL-60M
DimensionsInside760(W) × 650(D) × 950(H)mm760(W) × 700(D) × 1,560(H)mm
Outside600(W) × 450(D) × 500(H)mm600(W) × 500(D) × 1,000(H)mm
Capacity135ℓ300ℓ
Shelves3ea4ea
TemperatureAmbient +5°C ~ 70°C
Temp. reliability±0.1°C at 120°C
Temp. controlDigital PID Controller
MaterialExternalSteel Plate with Powder Coating
InternalStainless steel(SUS 304)
DoorSilicon sealed door, tempered inner glass
Safety deviceOverheat prevention
Power220Vac, 60Hz, 1.6KW220Vac, 60Hz, 2.0KW
