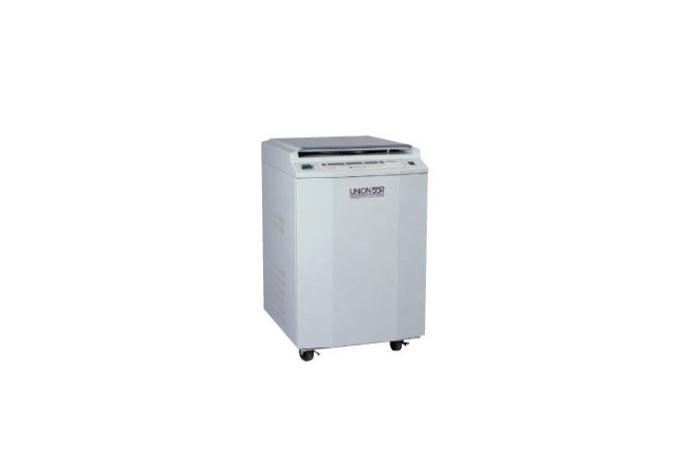

의료용 원심 분리기 (Medical Centrifuge)

Model

Series

-


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.


Description

Dimensions
550 x 600 x 865 mm



강력한 AC Motor를 사용하여 소음과 진동이 안정적이어서 다목적 처리에 적합

CFC Free 냉동시스템을 적용하여 친환경적이고 효율적인 Cooling이 가능

Floor Type으로 배치와 이동이 자유로움

다양한 용량의 Tube를 사용

회전속도 이상 감지

챔버내 온도 이상 감지

로터 진동 감지

시스템 에러 감지

도어 오픈 감지





모델Union 55R
Max. RPM10,000rpm(Angle)
5,500rpm(Swing)
Max. RCF12,857 x g(Angle)
5,411 x g(Swing)
MAX. capacity6 x 85ml(Angle)
32 x 15ml(Swing)
Temperature range-20°C to +40°C
Temperature limit set range0°C to ±30°C
Timer9 hrs 59 min 59 sec
Deceleration time10 setting
Programmability10 memory
Rotor recognition10 rotors
Digital displayRPM, RCF, Time, Program, Brake
Rotor Number, Temperature, Temp. Limt
Drive motorAC Induction motor
Power220Vac, 60Hz, Single phase, 1.2kW
Dimension(W x D x H)550 x 600 x 865 mm
Weight122Kg
