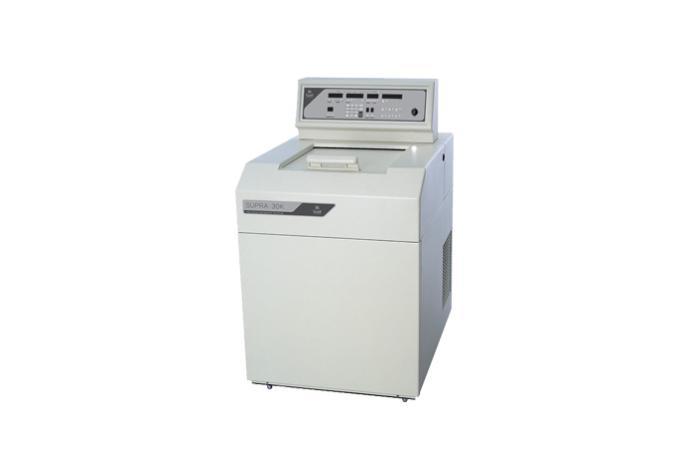

고속도 원심 분리기 (High Speed Centrifuge)

Model

Series

-


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.


Description

Dimensions
710 x 1000 x 1260 mm




One chip microprocessor 컨트롤 적용
사용 간편한 조작 방법으로 제품 운영
공학적 모터 설계로 품질이 보증 됨
CFC Free 냉동시스템 적용으로 친환경적
RPM/RCF  자동 연산 기능 적용
피드백 진공제어 시스템 적용
로터 멸균 가능
고진공 시스템과 초고속용 특수 플렉시블 드라이브 시스템 적용
Fixed angle rotors, Swing bucket, Vertical and Zonal continuous flow rotors 사용
진공 압력은 디지털 진공 게이지에 의해 정밀하게 측정됨
회전속도 이상 감지
챔버내 온도 이상 감지
로터 진동 감지
시스템 에러
도어오픈 감지
자동로터 인식





모델Supra 30K
Max. RPM30,000rpm
Max. RCF98,608 x g
MAX. capacity4 x 1000ml
Speed preset and display1 rpm
Temperature range-20°C to +40°C
Temperature limit set range0°C to ±30°C
Timer9 hrs 59 min 59 sec and “Hold” for free run
Acceleration time10 setting
Deceleration time10 setting
Programmability100 memory
Rotor recognition15 rotors
Rotor radius set range0.1 mm to max radius
Digital displayRPM, RCF, Time, Temperature, Temp. Limit,
Program, Accel/Decel Time, Rotor Number,
Rotor Radius,∫w2df, Self Test
Power requirements220V, 60Hz, single phase, 3.9kW
Dimension(W x D x H)710 x 1000 x 1260 mm
Weight330Kg
