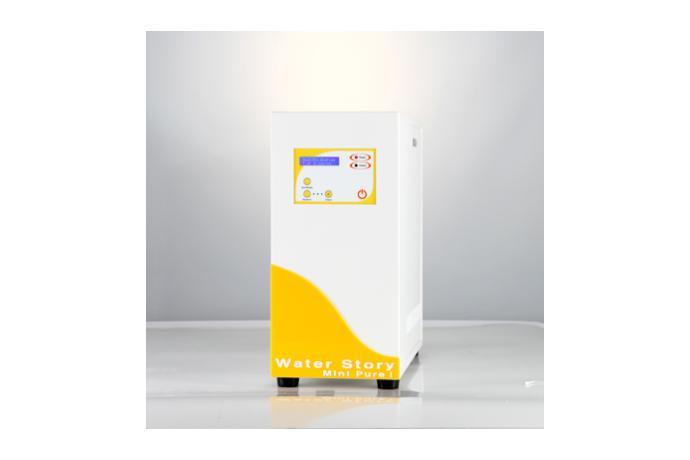

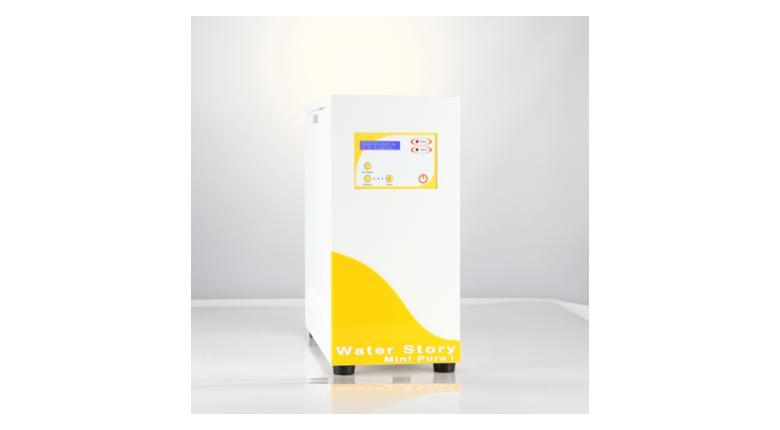

Product Name Mini Pure
Model MDM-0170/0171
Series Water Purification Systems
Catalog
Product Description

Dimensions
200(W) x 450(D) x 445(H)mm




16X2 blue backlight LCD
Can indicating error messages
Equipped P.W water quality sensor : real-time display
Estimate filter life : display run time & remain life (as %)
Replacement warning and screen display : when water quality falls lower than standard
Display filter error : filter pack’s wrong position or wrong pack type
Easy replacement : Guard filter, P.W filter are designed as Pack type (Design registered on Korea Gov.)
Openable front door for easy maintenance


Item#MDM-0170MDM-0171
ModelMini Pure IMini Pure II
Flow RateMax. 13ℓ/hr. (P.W standard)Max. 23ℓ/hr. (P.W standard)
Water quality displayInput Water (I.W) : 0 ~ 200µs/cm
Display16×2 characters backlight LCD digital display
Standard FilterGuard Pack, P.W Pack
FunctionsSystem initializing
Self protect functions :
– Auto stop and restart by input water supply
– Auto stop and restart by level sensor
– Auto stop and restart function by wrong filter position or pack type
Mode key function :
– P.W Purity remain(%)
– Buzzer off
Check key function
: Warning when filter purity falls lower than standard
′Filter replace′ indications
Auto drain control without special pressure controller
Input water conditionsInput pressure 1~3kgf/cm2, Input temperature 4 ~ 35°C
Dimensions200(W) × 450(D) × 445(H)mm
Power230Vac, 50/60Hz, 60W
