Product Name Dream Plus
Model MDM-0120/0121
Series Water Purification Systems
Catalog
Product Description

Dimensions
400(W) x 505(D) x 517(H)mm




16X2 blue backlight LCD
Can indicating error messages
Equipped P.W, U.W water quality sensors : real-time display
Estimate filter life : display run time & remain life (as %)
Replacement warning and screen display : when water quality falls lower than standard
Display filter error : filter pack’s wrong position or wrong pack type Easy replacement : Guard Pack, P.W Pack, U.W Pack are designed as Pack type (Design registered on Korea Gov.)

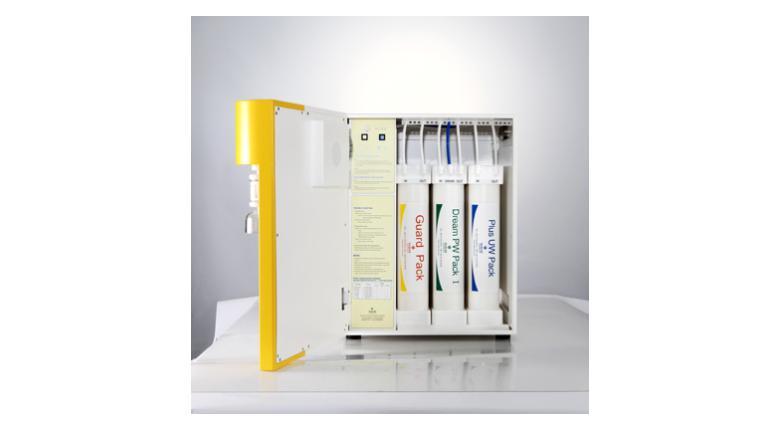

Openable front door for easy maintenance


Item#MDM-0120MDM-0121
ModelDream Plus IDream Plus II
Flow RateMax. 15ℓ/hr. (P.W standard)Max. 25ℓ/hr. (P.W standard)
Water quality displayInput Water (I.W) : 0 ~ 200µs/cm
Ultra Pure Water (U.W) : 0 ~ 18.2MΩ.cm
Display20×4 characters backlight LCD digital display
Standard FilterGuard Pack, Dream P.W Pack, Plus U.W Pack, 0.2µm Final filter
Option Filter’s254/185nm UV Lamp , 0.05µm UF filter
FunctionsSystem initializing : Automatic self test when starting
Self protect functions :
1. Auto stop and restart by input water supply → Auto/Manual selectable
2. Auto stop and restart by level sensor → Auto/Manual selectable
3. Auto stop and restart function by wrong filter position or pack type
Mode key function :
1. P.W Purity remain(%)
2. U.W Purity remain(%)
3. Buzzer off
Check key function
: Warning when filter purity falls lower than standard
‘Filter replace’ indications
Auto drain control without special pressure controller
Input water conditionsInput pressure 1~3kgf/cm2, Input temperature 4 ~ 35°C
Dimensions400(W) × 505(D) × 517(H)mm
Power230Vac, 50/60Hz, 60W


TypeSimpleTOCCellaFinesta
Feature
0.2µm Final Filterstandardstandardstandardstandard
254/185nm UV Lampstandardstandard
0.05µm UF filterstandardstandard
Water Quality
TOC(ppb)5 ~ 101 ~ 55 ~ 101 ~ 5
Pyrogens< 0.001Eu/mℓ< 0.001Eu/mℓ
Particle (0.2µm)< 1/mℓ< 1/mℓ< 1/mℓ< 1/mℓ
Bacteria< 1cfu/mℓ< 1cfu/mℓ< 1cfu/mℓ< 1cfu/mℓ
