Product Name Wellix Plus
Model MDM-0110/0111
Series Water Purification Systems
Catalog
Product Description

Dimensions
400(W) x 492(D) x 517(H)mm




20×4 blue backlight LCD : display water quality and temp. in one screen
Can indicating error messages and solutions
Equipped sensors of water quality and temp. : real-time display
Safe filter replacement : remove input pressure automatically
Estimate filter life : display run time & remain life (as %)
Replacement warning and screen display – when water quality falls lower than standard
Sound(human voice) warning : replacement time of P.W Pack and U.W Pack
Display filter error : filter pack’s wrong position or wrong pack type
Easy replacement : U.W filter is designed as Pack type (Design registered on Korea Gov.)

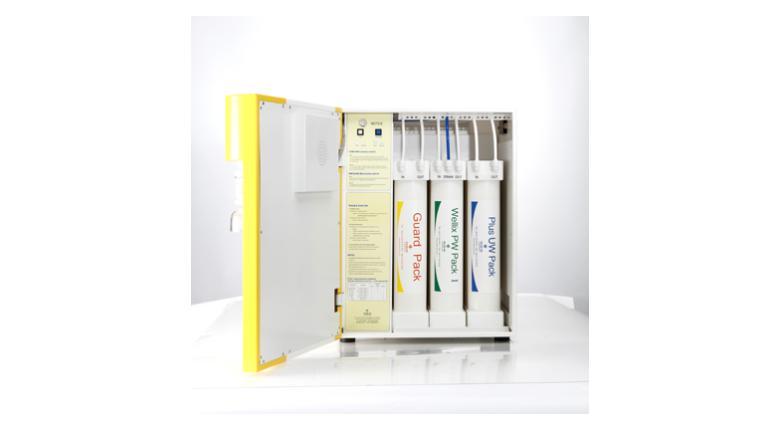

Openable front door for easy maintenance


Item#MDM-0110MDM-0111
ModelWellix Plus IWellix Plus II
Flow RateMax. 27ℓ/hr (P.W. standard)Max. 37ℓ/hr (P.W. standard)
Water quality displayInput water(I.W) : 0 ~ 600µs/cm
Pure water(P.W) : 0 ~ 200µs/cm
Ultra water(U.W) : 0 ~ 18.2MΩ.cm
Input Temperature(I.T) : 0 ~ 99.9 °C
Display20×4 characters backlight LCD digital display
Standard FilterGuard Pack, Wellix P.W Pack, Plus U.W Pack, 0.2µm Final filter
FunctionsSystem initializing : Automatic self test when starting
Auto Membrane washing
Self protect functions :
1. Auto stop and restart by input water supply → Auto/Manual selectable
2. Auto stop and restart by level sensor → Auto/Manual selectable
3. Auto stop and restart function by wrong filter position or pack type
Auto/Manual Recycle
Mode key function :
1. Guard Pack run time display
2. Wellix P.W Pack run time display
3. Plus U.W Pack run time display
4. 254/185 UV Lamp run time display
5. P.W Purity remain(%)
6. U.W Purity remain(%)
7. Buzzer off
Check key function
: Warning when filter purity falls lower than standard
Filter replacement function
‘Filter replace’ indications
Auto drain control without special pressure controller
Input water conditionsInput pressure 1~3kgf/cm2, Input temperature 4 ~ 35 °C
Dimensions400(W)x 492(D)x 517(H)mm
Power230Vac, 50/60Hz , 60W



TypeSimpleTOCCellaFinesta
Feature
0.2µm Final Filterstandardstandardstandardstandard
254/185nm UV Lampstandardstandard
0.05µm UF filterstandardstandard
Water Quality
TOC(ppb)5 ~ 101 ~ 55 ~ 101 ~ 5
Pyrogens< 0.001Eu/mℓ< 0.001Eu/mℓ
Particle (0.2µm)< 1/mℓ< 1/mℓ< 1/mℓ< 1/mℓ
Bacteria< 1cfu/mℓ< 1cfu/mℓ< 1cfu/mℓ< 1cfu/mℓ
