Product Name Power Distributor Amp
Model MPDU-220
Series Others System
Catalog Equipment Overview & Function.pdf
Product Description

1. Description
○ This device supplies and distributes power to each equipment.

○ Once received the power, it can be controlled manually or by remote, can be
    used with 110V and 220V.

○ Depends on input power, it can be used both 110V/220V simultaneously.

○ Multiple equipment can be connected through extra terminal.

○ When used by remote control, place remote switch on Remote with remote
    terminal connection at rear panel.

○ An aux socket is equipped to use extra power.The front meter confirms output

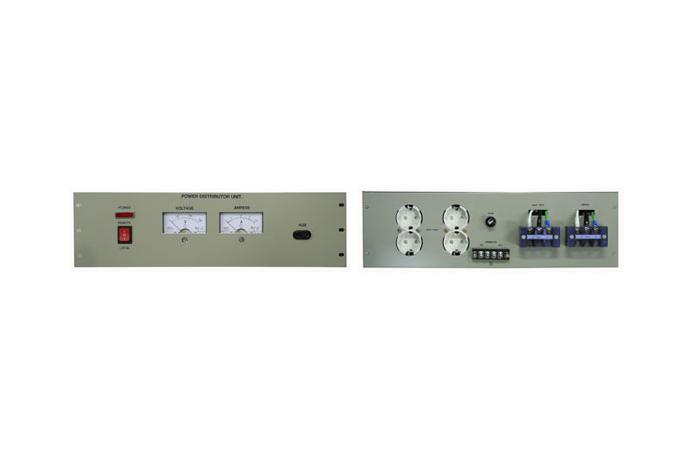

2. Panel Drawing

Max Digital Tech Power Distributor Amp MPDU-220


3. Specification

○ General Part
  - Input Power : AC 110V/220V 60Hz
  - Input Fuse : 20A
  - Input Switch : Local/Remote
  -  Output outlet  : 2 tubes connection 110V type,2 tubes connection 20V type
  - AUX socket :  1circuit
  - Remote Input Source  : ON / OFF touch

○ Case Part
  - Type : 19” Rack Type
  - Dimensions : 483(W) * 133.5(H) * 300(D) mm
