1. Description

○ This Remote Control Touch Panel is designed to control integrating system with
    Main Control Unit (MMCU-100S, 150S, 200,250S, 300S) through RS-232C port.

○ Based on PC structure, Remote LAN LCD Touch Panel has a notebook quality
    sensible and stylish high glossy black color design, fully compatible with PC, and
    excellent mobility.

○ 512MB DDR2 Memory

○ Supports 1024x600 resolution, maximum 2048x1536 with external display
    connection.

○ Convenient Touch Screen with Key Pad for typing

○ Mouse function-mouse, joystick and mouse buttons are all available.

※  Note: All Specifications are subject to change without prior notice

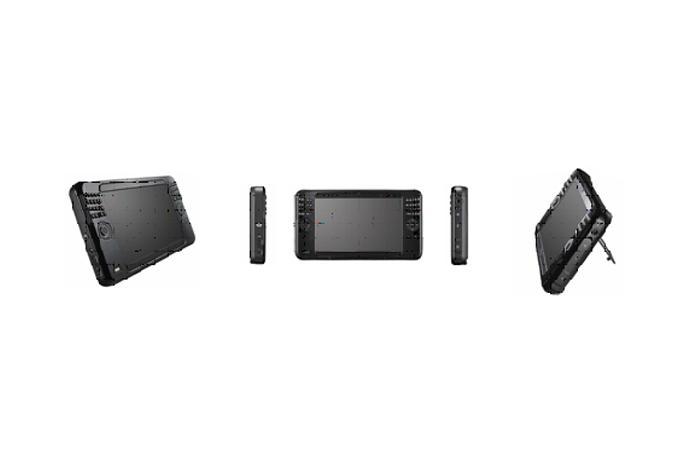

2. Panel Drawing

3. Specification

○ General Part
  - CPU : Intel ULV CPU
  - Cache : 512KB
  - Main Memory : 512MB ~ 1GB, MAX 1GB, Memory Type : DDR2 SODIMM
  - Main Chipset : Intel 945GU
  - HDD : 1.8” HDD, 40GB
  - Graphic : Intel Graphic Media Accelerator 945
  - Sound Chipset : HD Audio, ALC262 Codec
  - Network : LAN : Broadcom BCM4401E 10/100 PCI Ethernet Controller /
                     W/L : 802.11BG Bluetooth 2.0+EDR
  - Port : USB 2.0 Port X 2, Video(Monitor) Port, Lan,Power
  - Size : 227.5(W) * 123.9(H)* 22.9 ~ 23.9(D) mm
  - LCD : 7” WSVGA (1024X600)
  - Battery : Lithium ion Smart ( 4 Cells or 6 Cells)

○ Power Part
  - Power source : AC 100 ~ 240VAC, 50/60Hz/60W,
