Product Name Signal Distributor Unit
Model MSDU-800C
Series CCTV System
Catalog Equipment Overview & Function.pdf
Product Description

1. Description

○ This device is to control multiple unit of receiver by connecting Main Control Unit
    (MMCU-100C/300C).

○ Connected to each communication control device, it enables to control receiver
    and RS-422.

○ There are One Main Communication Port and 8 Local Ports available.

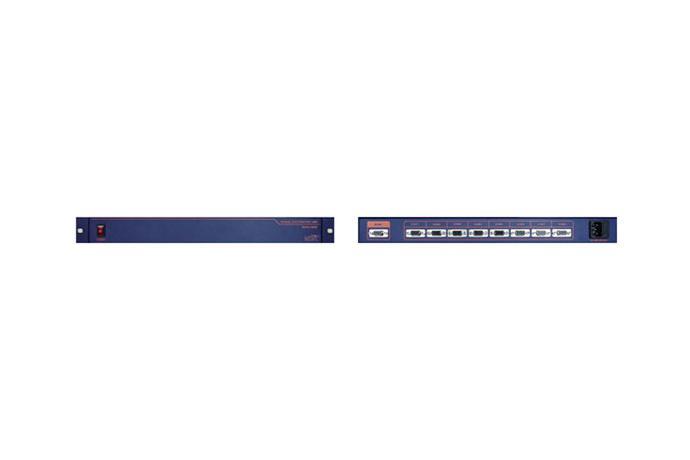

2. Panel Drawing

Max Digital Tech Signal Distributor Unit MSDU-800C



3. Specification

○ General Part
  - Main communication port Local : 1 port (RS-232C)
  - Control communication port : 8 port (RS-422)
  - Main port : max232 (RS-232)
  - Local port : 75176 (RS-422)

○ Case & Power Part
  - Power source : AC 220V 60Hz
  - Temperature : 0℃ ~ 40℃
  - Type : 19” Rack Type
  - Dimensions : 483(W) * 44.5(H) * 300(D) mm
