product Image

TOP

Touch Panel
Model Name
MDTC-WL10
Series
MDTC Control System
Data
장비개요 및 성능
Manufacturer information
provider logo
Max Digital TechDVI, HD-SDI, AV, RGB, Total control, Total control system developer
Problem with product info?
Update request
Manufacturer
Max Digital Tech
Brand
-
SKU
45116
Product Name
Touch Panel
Model Name
MDTC-WL10
Size
-
Weight
-
Product Details

1. 개 요

○ 본 제품은 무선 TOUCH PANEL로서 Main Control Unit[MMCU-50S,200S,250S,300S]
    와 Wireless Lan으로 연결하여, 시스템 제어를 위한 통합 제어용 Touch Panel로
    사용하는 제품이다.

○ 본 시스템은 PC 구조를 기반으로 한 무선 Lan LCD Touch Panel로서, 감각적인 디자인
    으로, 완벽한 PC 호환성, PC 수준의 성능, 뛰어난 휴대성으로 노트북과 동일한 성능의
    세련된 디자인과 편리한 다목적 무선 Touch Panel 이다.

○ Display는 10.4” 이며 해상도는 1024 x 768을 지원한다.

○ 손으로 문자 입력 및 선택제어 가능한 편리한 터치 스크린 적용

※ 본 제품의 외관 및 사양은 사전공지 없이 동급사양으로 변경될수 있음을 공지합니다.

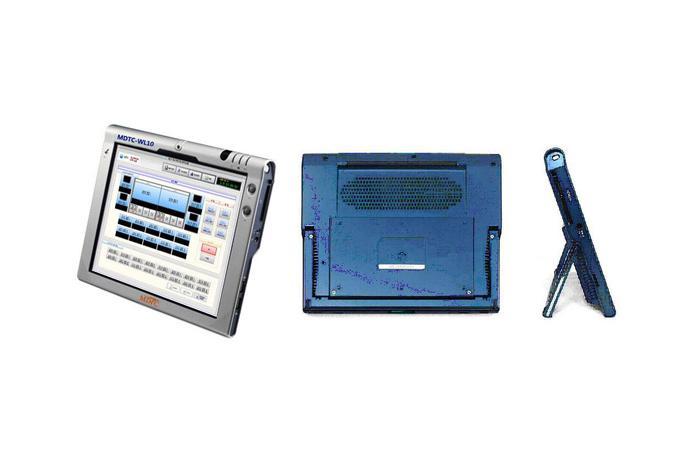

2. 외형도

맥스디지털테크(주) Touch Panel MDTC-WL10



3. 성능 및 규격

○ Specification

   - CPU : AMD LX800 500MHz
   - Display : 10.4” TFT LCD Touch Panel (1024 x 768)
   - Storage : CF2G (SLC Type)
   - Memory : 512MB
   - Networking : WIFI 802.11b/g
   - OS : Embedded XP
   - Interface : USB 2.0 x 2 Microphone/Ear Jacks
   - Battery : Li-ion polymer 5000mAh,8.4V
   - Power Supply : AC/DC adapter (Input 100 쭯 240V 50-60Hz)
   - Dimensions(WxHxD) : 252 x 205 x 27 mm
   - Weight : 1.3Kg
