Product Name Touch Panel
Model MTS-15-3
Series MDTC Control System
Catalog Equipment Overview & Function.pdf
Product Description

1. Description

○ 15” All-in-one Touch Computer Panel is designed to control integrating system
    with Main Control Unit (MMCU-100S, 150S, 200,250S, 300S) through RS-232C port.

○ Based on PC structure, its all purpose system is compatible with various CPU
    from NS Geode 233/300 MHz to Intel Pentium Ⅲ 850MHz.

○ Basically 4 Serial Port, 10/100 Ethernet, Sound, USB Port are installed.
    Additionally various I/O Card, PCMCIA Card, VISION Card are available for Field
    Bus Master Card, Motion Controller for more PC control usage.



2. Panel Drawing

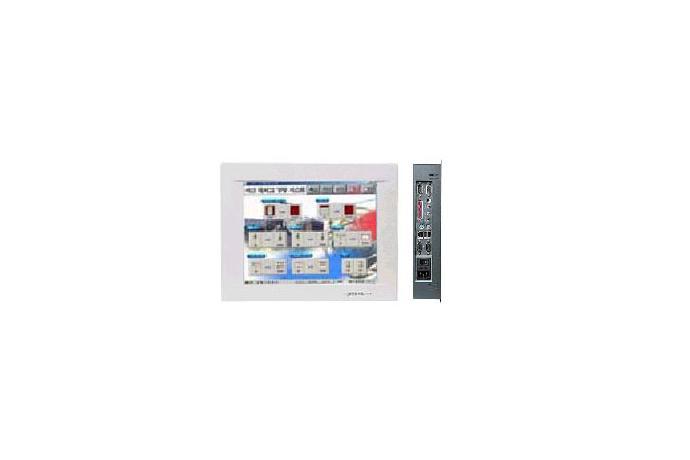

Max Digital Tech Touch Panel MTS-15-3



3. Specification

○ General Part
  - Installing Copper Radiant Heat Panel and Dual Ball Bearing Cooling Fan prevent
     heat problem for CPU of Pentium Ⅲ
  - One of the safest chipset in the field-Intel440bx is used for main CPU board.
  - Disconnecting external noise for serial ports protects ESD of 1.5Kv.
  - Advanced 10/100 Base Ethernet (Supports Wake on LAN, Boot Rom, PXE
     function)
  - Use best VGA Controller - C&T 69030
  - Enables LCD Luminous Intensity control
  - Self Diagnosis Function- GENESYS GL518SM
  - Built-in Stereo Audio with 3watt GPS and Flash Disk support (No amplifier
     needed)
  - 15.1" SVGA TFT LCD
  - PCI and ISA
  - 3.5"Hdd, Slim Size CD-ROM, 3.5" Fdd .
  - DISPLAY TYPE : 12.1" TFT
  - RESOLUTION : 800 * 600
  - MAX COLORS : 262K
  - Slot : 1 PCI or 1 ISA
  - CPU : Intel Celeron/Pentium Ⅲ/850 Ns Ge Ode 233/266/300
  - MEMORY : 256MB SDRAM (EMB-370 BOARD)/128MB SDRAM (EMB-586G BOARD)
  - TOUCH SCREEN : 3M Dynapro Touch Screen : (ANAIOG REGISTIVE TYPE)
  - THERS : 4 Serial Port, 1 Parallel Port, Sound / Mic / Line In Ports, External
     Crt Port, 2 Usb Port, 10/100M Lan
  - RELATIVE HUMIDITY : 5% ~ 85% / 40℃(Non-Condensing)
  - VIBRATION (OPERATION) : 5 ~ 500Hz 1G Rms Random Vibration

○  FRONT PANEL
  - 7 Layer Dynapro Touch Screen gives maximum confidence
  - Tempered Acrylic Screen provides perfect protection.
  - Satisfied NEMA4/12IP65 standard.

○ Power Part
  - Power source : 80 Watts, Input Voltage 90 ~ 270VAC/47 ~ 63Hz,
                               Output Voltage +5V/10A, +12V/2.0A,
