|Product Name||Main Control Unit|
|Series||MDTC Control System|
○ This integrating Main Control Device for medium to large size hall or conference
room suits to multi connected system such as stage equipment.
○ Connected with various devices it controls the operating program or key pad.
○ LED provides view of transmission status controlled by control devices or
Touch panels that are connected to MCU.
○ There is one main port for TOUCH PANEL or KEY-PAD.
○ It includes five LAN, WAN, or the Internet ports and six IR control ports.
○ Option: Nine input connectors for receive alarm data such as sensor and three
mono volume up/down controls.
○ 36 input ports control lighting, screen settings, and other device functions.
○ An optional LAN port controlled by TCP/IP.

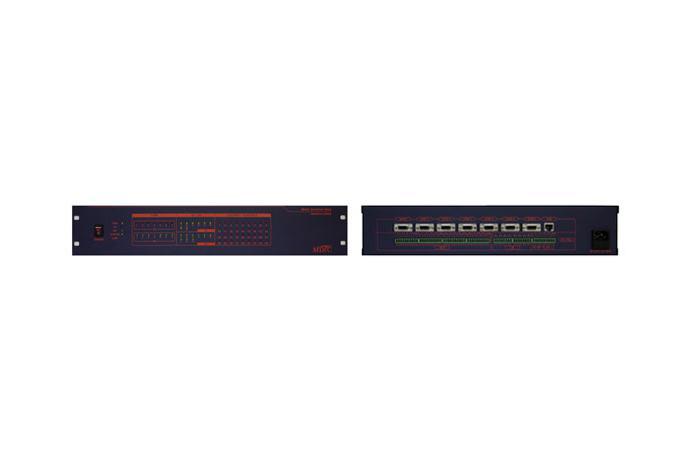

2. Panel Drawing
○ General Part
- Main communication port : 1 RS-232C/422
- Local control communication port : 6 RS-232C/422
- IR Port / Serial port : 8IR
- Input port : 9 relay
- Output port : 36 relay
- CPU : 89C52
- Ram : 32Kbyte
- Relay : DC30V 2A, AC125V 0.5A
- Communication : 16C550 (RS-232C/422)
○ Case & Power Part
- Power source : AC 85 ~ 240V 50 ~ 60Hz
- Temperature : 0℃ ~ 40℃
- Power consumption : Below 30Watt
- Type : 19” Rack Type
- Dimensions : 483(W) * 89(H) * 300(D) mm
