RGB Matrix Switcher

Model

Series

RGB & DVI System


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.


Description

1. Description

■ This equipment switches 16 types of R, G, B, HD, VD signals without signal
    resistance or disturbance by receiving 16 types of R, G, B, H, V input/output
    signals.

■ Front switch enables to control input/output and remote control function is
    available through RS-232C Port.

■ The front LCD Display panel enables easy view of inputs and outputs.

■ Memory function by PGM Key enables to save and execute the last input/output
    status.

■ Memory Back-up function helps to maintain the last status while it is turned off.

■ LED Switch enables to check status of the selection.

■ It is included that audio 16 input 16 output expanded matrix function for process
    of  audio matrix. (option)



2. Panel Drawing

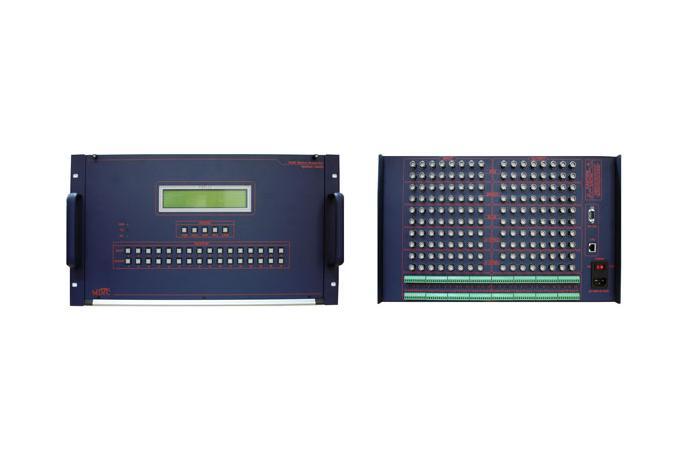

Max Digital Tech RGB Matrix Switcher MRMS-1600S



3. Specification

■ Video Part
  - Input/Output number : 16 x 16
  - Input/Output type : RGBHV
  - Input/Output connector : 5 BNC
  - Input/Output level : analog RGB : 1.2Vp-p Max, H-Sync, V-Sync : TTL level
  - Input/Output impedance : 75Ohm ± 1%
  - Bandwidth : 600 MHz (-3 dB), fully loaded
  - Crosstalk : -78 dB @ 5 MHz, -70 dB @ 10 MHz
  - S/N : below 70dB

■ Audio Part(Option)
  - Input/Output number : 16 x 16
  - Input/Output type : balanced Stereo
  - Input/Output connector : Wago
  - Input/Output level : 2.2Vp_p
  - Max level : 20dBm
  - Input/Output impedance : 600Ohm
  - Frequency response : ±0.1dB(20Hz ~ 20kHz)
  - Crosstalk/Noise level : -70 dB Min/ - 70dB

■ Remote Control Part
  - Serial control : 1 RS-232, D-sub 9pin connector
  - Ethernet control(Option) : 1 RJ-45 female connector
  - Lock/PGM/ Call,Memory Setting

■ Case & Power Part
  - Power source : AC 85 ~ 240V 50 ~ 60Hz
  - Temperature : 0℃ ~ 40℃
  - Power consumption : below 40Watt
  - Type : 19” Rack Type
  - Dimensions : 483(W) * 267(H) * 320(D) mm
