맥스디지털테크(주) HD SDI Matrix Switcher MMS-400HD

1. 개 요

■ 본 장비는 4개의 입력된  Digital Video HD SDI 신호를 선택하여 4개의 해당  출력에
    절체시켜주는 고해상도 Digital Video 분배,교환장치이다. (3G,HD-SDI,SDI)

■  SMPTE 259M, SMPTE 292M,SMPTE 344M, and SMPTE 424M Compliant

■  전면의 조작 KEY로 원하는 입,출력을 제어할수 있으며 RS-232C 및 LAN Port 를
     이용하여 Remote 제어가 가능토록 되어있다.

■  전원 OFF시에도 최종 연결값을 가지고 있도록 Memory Back-up 기능이 있다.

■  PGM,CALL 기능이 있어 신호의  연결값을 저장 및 실행할수 있다.

■  전면에 입력의 연결상태를 확인할수 있는 LCD Display Panle이 부착 되어있다.

■  외부 입력신호와 동기를 맞추기 위한 Sync 단자가 있다.

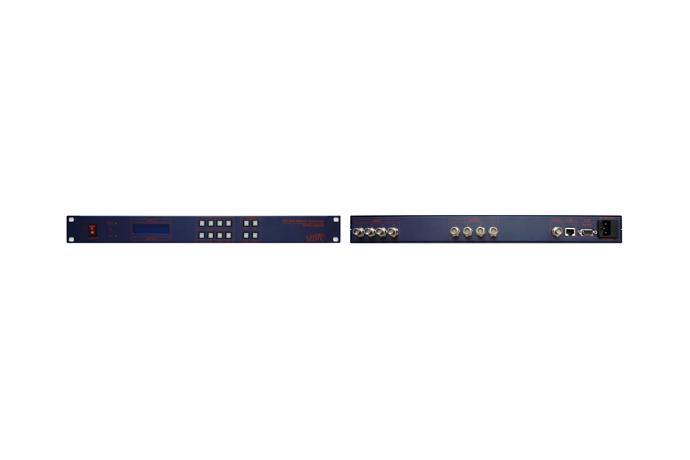

2. 외형도

맥스디지털테크(주) HD SDI Matrix Switcher MMS-400HD 1



3. 성능 및 규격

■  General Part
  - Gain : Unity
  - Maximum data rate : 2.97Gbps
  - Input/Output connector : BNC
  - Auto data rate lock : Yes
  - Operation standards : SMPTE 292M, SMPTE 344M,SMPTE 259M,
     SMPTE 424M compliant

■  Input cable equalization distance
  - Belden 1694A cable
    . 3G (2.97Gbps) -100m
    . HD-SDI (1.485Gbps) -200m
    . SDI (270Mbps) -400m

■  Video Part
  - Input/Output number : 4 x 4
  - Input/Output type : SDI or HD-SDI,3G digital component video, 75ohm
  - Input/Output connector : BNC
  - Input/Output level : 0.8 Vp-p ±10%
  - Return loss : > 15dB
  - Equalization : Automatic
  - Re-clocking : Automatic
  - Jitter : <0.2 UI

■  Remote Control Part
  - Serial control : 1 RS-232 and 1 Lan Port

■  Case & Power Part
  - Power source : AC 85 ~ 240V 50 ~ 60Hz
  - Temperature : 0℃ ~ 40℃
  - Power consumption : below 20Watt
  - Type : 19” Rack type
  - Dimensions : 483(W) * 44.5(H) * 300(D) mm
