전송기 - 유량전용

Model Name

ADF9500 Series

Series

Transmitter (temperature/pressure/differential pressure)

View AllView All Series

Data

Catalog-M&C Engineering-Smart Pressure Transmitter - ALIA-ADF9500 Series

Manufacturer information

M&C ENGINEERING

Flowmeter and various instruments

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

M&C ENGINEERING

Product Type

Machine

Brand

SKU

139892

Product Name

전송기 - 유량전용

Model Name

ADF9500 Series

Size

Weight

Product Details

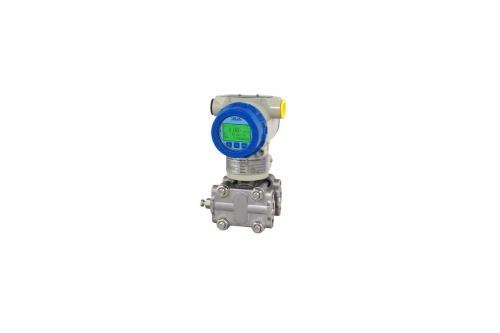

ADF9500 series is a transmitter of differential pressure flowmeter. Differential pressure can be converted into flow value via microcomputer technology and flowrate, totalizer. The differential pressure can be displayed directly in LCD screen. It's equipped with strong output function: 4-20mA, pulse and HART. ADF9500 is widely used in differential pressure sensors such as orifice, venturi, annubar, v-cone etc..
It has high stability and high accuracy.

Feature

Converter can be rotated at six directions for easy installation
Can display flow rate, totalizer and differential pressure at the same time
Two years stability of 0.2%
0.075% accuracy
Parameter setting by keypad directly
4-20 mA and pulse output, HART communication
Automatic zero calibration by press-button
Explosion proof and weather proof housing

Specification

Process Fluid:	Display:
Liquid, Gas of Vapor	9-digit totalizer, 6-digit flow rate
Application:	Display Unit:
Differential pressure flow measurement	32 flow engineering unit
Pressure Range:	5 Digits programmable for special unit
0 - 2500kPa	Keypad:
Flow Range:	3 internal keys for programming
0 - 999999	and output setting
Turndown Ratio:	Current Output:
20 : 1	4 - 20 mA 2 wires
Accuracy:	with Hart signal (Compatible)
+/- 0.075% of span	Load
Stability:	Rohm=(Vdc-9)*50
+/-0.15% of URL for 2 years	Pulse Output:
Working Temperature:	Scale Pulse
-25 to +95 ^oC	Power Supply:
Max. Pressure:	9 - 36 VDC
40 Mpa	Damping:
Material:	0 - 32 seconds
Flange/Adapter	Humidity Limit:
Stainless Steel 304 / Stainless Steel 316	0 to 100% Relative Humidity
Drains/Vents	Turn on Time:
Stainless Steel 304 / Stainless Steel 316	2 Seconds with minimum damping
Diaphragm	Zero Calibration:
Stainless Steel 316L / Hastelloy B /	Automatic zero calibration by press-button
Hastelloy C / Monel / Tantalum	Cable Entry:
Wetted O-Ring	M20 Conduit Threads / 1/2" NPT (Female )
Buna N / Viton / PTFE	Temperature Effect:
Bolts & Nuts	+/-0.18% of span per 20 ^oC
Carbon Steel / Stainless Steel 316	Vibration Effect:
Mounting Bracket	+/-0.05% of URL per g to 200 Hz in any
Carbon steel / Stainless Steel 304 / 316	axis
Name / Tag Plate	EMI/RFI Effect:
Stainless Steel 304 / Stainless Steel 316	Follow SAMA PMC 33.1 from 20 to 1000
Converter Housing	MHz and for field strengths up to 30 V/m
Low copper cast aluminum alloy with	Process Connection:
polyurethane, light blue paint	1/4 - 18 NPT
Fill Fluid:	1/2 - 14 NPT (with adapter)
Silicone / Fluorine Oil	Ambient Temperature:
Protection Class:	-25 to +80 ^oC
IP67 (Standard )	Dimensions:
Intrinsically Safe EEx ia IIC T5 (Standard)	102 mm (W) * 188 mm (H) * 130 mm (D)
Explosion proof Ex D IIB T5 (Optional)	Weight:
Mounting:	3.5 Kg
Direct Mounting / Bracket on 2" Pipe
