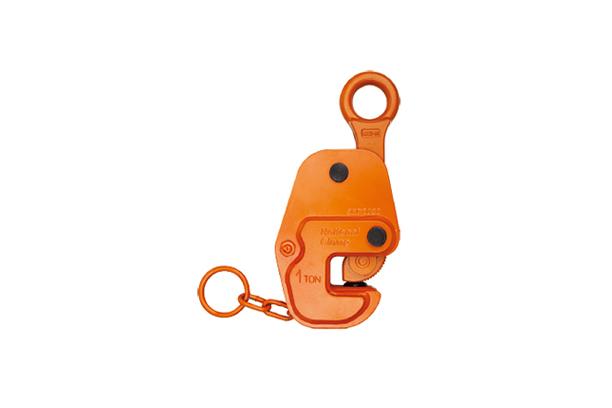

Horizontal Clamp (Horizontal Clamp for Section Steel)
Model Name
NGC-H
Size
-
Weight
-
Product Details
NGC-H
1
0-20
22
4
28
102
22
32
88
265
45
10
28
56
3.3
2
0-20
22
4
28
102
22
32
88
265
45
10
28
56
3.3
3
0-20
22
4
28
102
22
32
88
265
45
10
28
56
3.3
3
0-20
22
4
28
102
22
32
88
265
45
10
28
56
3.3
3
0-20
22
4
28
102
22
32
88
265
45
10
28
56
3
No.
ASSโY NAME
No.
PART NAME
No.
ASSโY NAME
No.
PART NAME
1
BODY
-
-
5
CAM PIN ASSโY
5-1
CAM PIN
2
SHACKLE ASSโY
2-1
SHACKLE
5-2
SPRING PIN
2-2
L-LINK
6
JAW ASSโY
6-1
SWIVEL JAW
2-3
RIVET PIN
6-2
BOLT & NUT
3
BODY PIN ASSโY
3-1
BODY PIN
7
LATCH ASSโY
7-1
SAFETY LATCH
3-2
SPRING PIN
7-2
HANDLE RING
4
CAM ASSโY
4-1
CAM
7-3
SPRING PIN
4-2
LINK
7-4
BOLT & NUT
4-3
SPRING PIN
8
LOCK SPRING
-
-
4-4
LINK PIN
Features
- Due to the safety lever, the NVC-L is convenient to use and also easy to separate the clamp after working with thick steel plates. - After releasing the lever, the link stops functioning even if the shackle is lifted. Therefore, it is easy to do the biting and releasing work.
How to use
- Insert a steel plate into the inside end of the clamp's jaw opening and then lock the safety lever. - Clamp the center of gravity of the work piece in order to equally distribute the weight of the work piece.
Warnings
- Do not exceed the rated capacity specified on the clamp. - Lift a work piece only which falls within the jaw opening range specified in the instruction manual. - Ensure that during the operation, the lever does not collide with other objects since the safety lever is attached to the exterior of hte clamp. - Never lift two or more work pieces with one clamp. - Lift a work piece only after checking the biting location and the biting condition of the work piece, and the proper functioning of the safety lever. - When lifting a work piece, a signal man must be outside the rotation radius of a work piece to send a signal to a crane operator.
