product Image

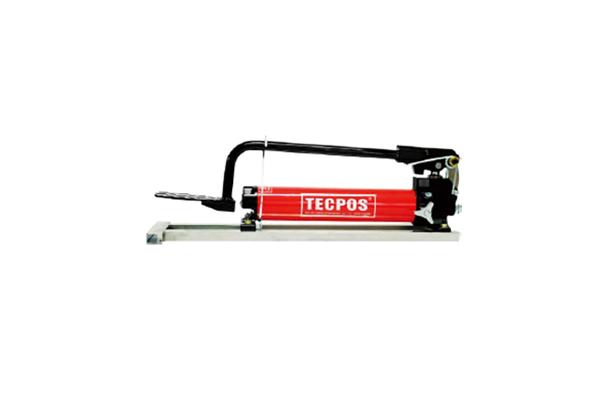

Hydraulic Pump
Model Name
ESP-05
Series
Hydraulic Equipment
View All
Data
-
Manufacturer information
provider logo
Magswitch Technology

Shipyard tools manufacturer, lifting magnet, clamp, magnetic tools for shipbuilding

Problem with product info?
Update request
Manufacturer
Magswitch Technology
Product Type
Machine
Brand
-
SKU
120029
Product Name
Hydraulic Pump
Model Name
ESP-05, ESP-08, ESP-17, ESP-25, ESPF-05
Size
-
Weight
-
Product Details

Description

Light Weight Aluminum Body! No Oil Leak!

- Light weight Aluminum bodyfor easy to handle
- Long stroke per pumping (26mm / pumping)
- No air valve designto reduceoilspill
- Max Pressure : 700 bar
- Piston Stroke : 26mm

Hydraulic Pump with NO Air Valve



Model#Max PressureVolume/stroke(cc)Piston StrokeUsable Oil CapacityOil tank CapacityMax Handle EffortWeight
Low Pressure
(at 20bar)		High Pressure
(at 700bar)
ESP-05700bar20.92.4726mm500cc700cc44kg4.6kg
ESP-0820.92.47800cc1,000cc35kg5.3kg
ESP-1732.72.471,700cc2,000cc35kg7.6kg
ESP-2541.02.942,500cc2,700cc38.5kg8.6kg
ESPF-0520.92.47500cc700cc35kg6.7kg
