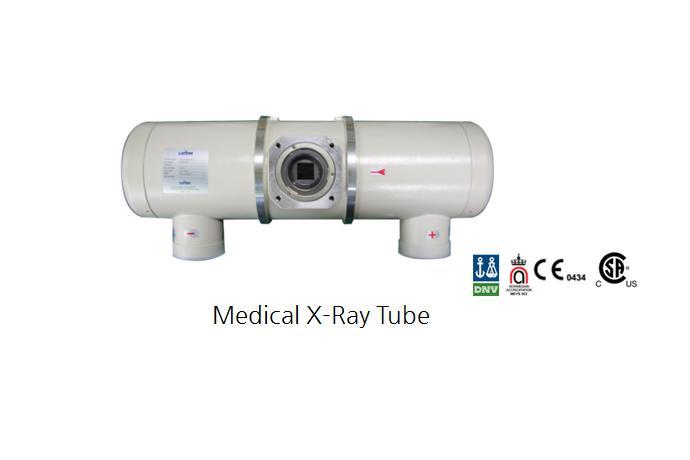

product Image
LUC-12M
Model Name
LUC-12M
Series
Medical X-ray Tube
View All
Data
-
Manufacturer information
provider logo
LUCEM

X-Ray tube manufacturer, Industrial / Dental / Medical X ray tube, Stator assembly, Housing assembly and more

Problem with product info?
Update request
Manufacturer
LUCEM
Product Type
Machine
Brand
-
SKU
57504
Product Name
-
Model Name
LUC-12M
Size
-
Weight
-
Product Details

ITEM

 Spec

Note

Maximum tube voltage

 40~150kV

Maximum tube current

 Large 700㎃/ Small 300㎃
Focal Spot Large 1.2mm / Small 0.6mm
Anode Input power (60Hz) Large 54kW / Small 22kW

.time : 0.1s
Anode Rotor Speed (Min) 50Hz 2,700rpm / 60Hz 3,200rpm
Target Angle 12°

Target Material

 W-Re, Mo
Filament Current (Max) Large 5.4A / Small 5.2A

Anode Heat Content (Max)

 300kHU

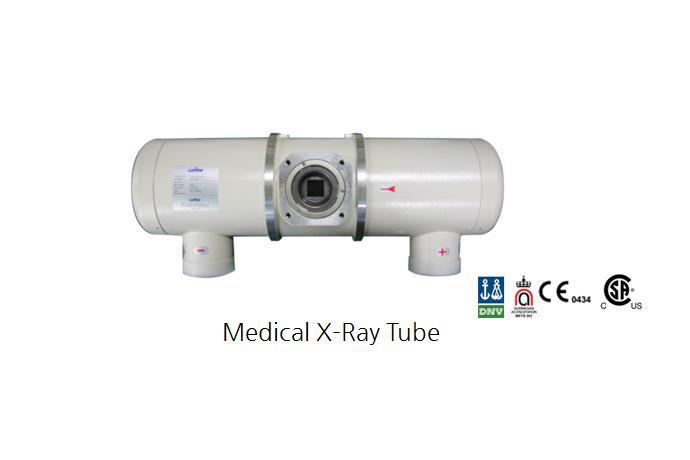

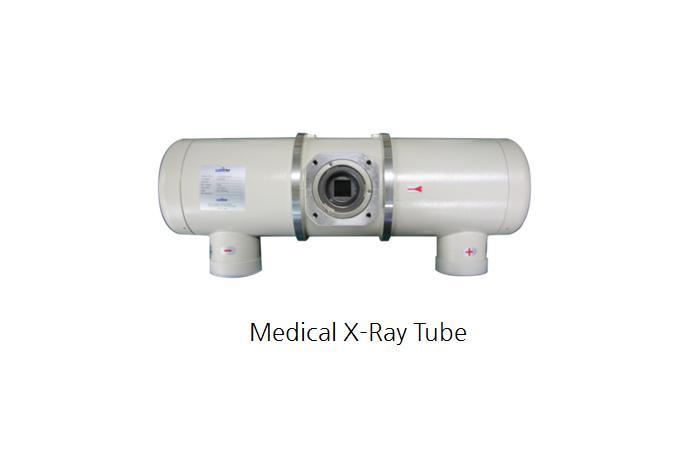

More products
Insert Tube
Insert Tube
LUC-15U
LUC-14U
LUC-11M
LUC-10M
LUC-9M
LUC-8M

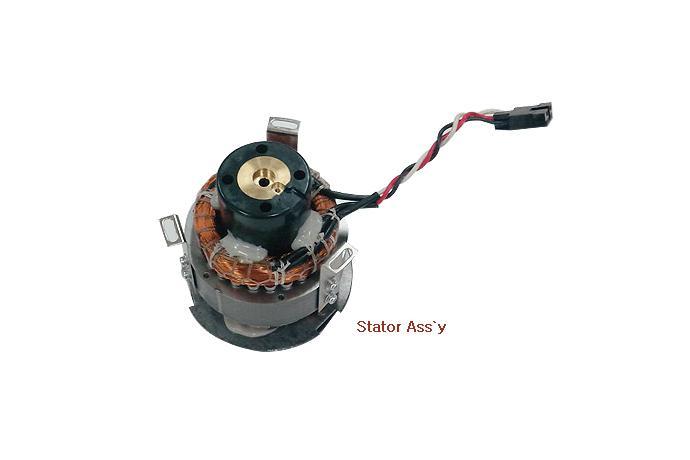

Stator Ass'y
