Overview
- Summary

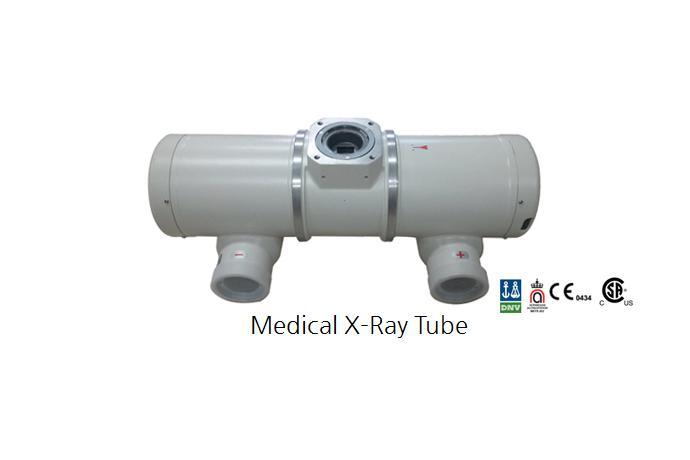

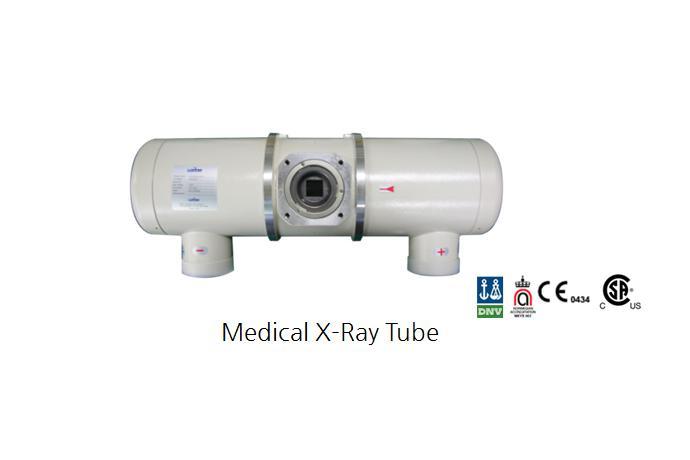

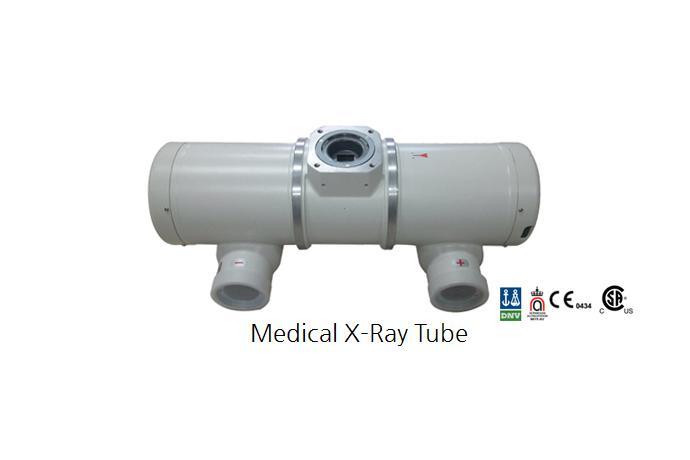

- A specialized X-Ray Tube manufacturer, supplying industrial, dental, and medical X-Ray Tubes, along with Stator Assembly and Housing Assembly products, both domestically and internationally.A specialized X-Ray Tube manufacturer, supplying industrial, dental, and medical X-Ray Tubes, along with Stator Assembly and Housing Assembly products, both domestically and internationally.
- Key Products/Technologies

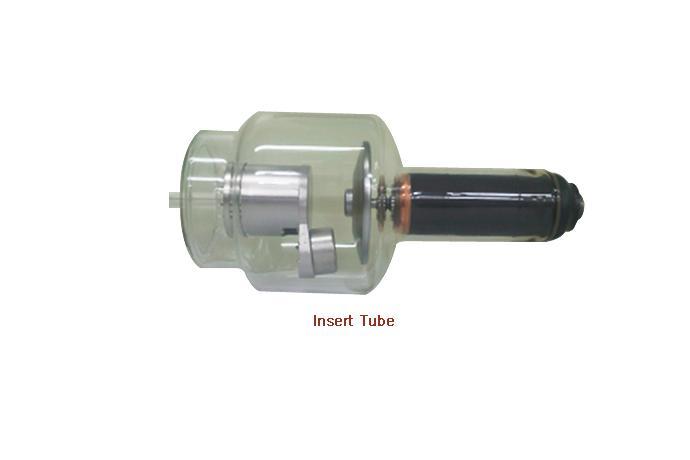

- Core product lines include Stator Ass'y, Insert Tube, and Housing Ass'y.Core product lines include Stator Ass'y, Insert Tube, and Housing Ass'y.
- Offering various X-Ray Tube models such as LUC-14U, LUC-12M, LUC-11M, LUC-10M, LUC-8M, LUC-9M, and LUC-15U.Offering various X-Ray Tube models such as LUC-14U, LUC-12M, LUC-11M, LUC-10M, LUC-8M, LUC-9M, and LUC-15U.
- The LUC-8M model features a maximum X-ray tube voltage of 125kV, focal spot size of 1.0/2.0㎜, anode heat content of 140kHU, and a minimum anode rotation speed of 3,200rpm (60Hz).The LUC-8M model features a maximum X-ray tube voltage of 125kV, focal spot size of 1.0/2.0㎜, anode heat content of 140kHU, and a minimum anode rotation speed of 3,200rpm (60Hz).
- The LUC-12M model provides a maximum X-ray tube voltage of 150kV, focal spot size of 0.6/1.2㎜, anode heat content of 300kHU, and a minimum anode rotation speed of 3,200rpm (60Hz).The LUC-12M model provides a maximum X-ray tube voltage of 150kV, focal spot size of 0.6/1.2㎜, anode heat content of 300kHU, and a minimum anode rotation speed of 3,200rpm (60Hz).
- The LUC-14U model offers high-performance specifications including a maximum X-ray tube voltage of 150kV, focal spot size of 0.6/1.2㎜, anode heat content of 300kHU, and a minimum anode rotation speed of 9,700rpm (180Hz).The LUC-14U model offers high-performance specifications including a maximum X-ray tube voltage of 150kV, focal spot size of 0.6/1.2㎜, anode heat content of 300kHU, and a minimum anode rotation speed of 9,700rpm (180Hz).
- Development capabilities for medical X-Ray Tubes, leveraging LG-Philips Display's CRT manufacturing technology.Development capabilities for medical X-Ray Tubes, leveraging LG-Philips Display's CRT manufacturing technology.
- Optimal focal spot design technology utilizing CRT simulation tools.Optimal focal spot design technology utilizing CRT simulation tools.
- Thermal analysis simulation capabilities using proprietary thermal analysis programs.Thermal analysis simulation capabilities using proprietary thermal analysis programs.
- Comprehensive tube testing capabilities, including knocking and seasoning tests, focal spot tests, and leak radiation test systems.Comprehensive tube testing capabilities, including knocking and seasoning tests, focal spot tests, and leak radiation test systems.
- Development and application of an in-house life test system based on CRT life test principles.Development and application of an in-house life test system based on CRT life test principles.
- High-definition and ultra-low radiation achieved through Carbon Nanotube (CNT) technology.High-definition and ultra-low radiation achieved through Carbon Nanotube (CNT) technology.
- Image quality enhancement technology through the digitalization of high-power X-ray sources and high-speed digital modulation.Image quality enhancement technology through the digitalization of high-power X-ray sources and high-speed digital modulation.
- Core Advantages
- Successful development and localization of medical X-Ray Tubes based on LG-Philips Display's CRT manufacturing technology.Successful development and localization of medical X-Ray Tubes based on LG-Philips Display's CRT manufacturing technology.
- Differentiated competitive advantages over existing companies in terms of quality, sales price, and supply lead time as a latecomer.Differentiated competitive advantages over existing companies in terms of quality, sales price, and supply lead time as a latecomer.
- Provision of verified performance and reliability through thorough life testing of developed products.Provision of verified performance and reliability through thorough life testing of developed products.
- Application of a strict quality control system and continuous efforts in R&D and technological innovation.Application of a strict quality control system and continuous efforts in R&D and technological innovation.
- Technological prowess in significantly improving image quality and minimizing radiation exposure through high-power digital high-speed modulation technology.Technological prowess in significantly improving image quality and minimizing radiation exposure through high-power digital high-speed modulation technology.
- Pioneering role in successfully developing Korea's first medical rotating X-ray Tube for human diagnosis in 2012.Pioneering role in successfully developing Korea's first medical rotating X-ray Tube for human diagnosis in 2012.
- Offering an industry-leading 18-month warranty period for medical products.Offering an industry-leading 18-month warranty period for medical products.
- Establishment of a robust technology infrastructure through industry-academia-research and government support, coupled with core personnel having over 20 years of experience.Establishment of a robust technology infrastructure through industry-academia-research and government support, coupled with core personnel having over 20 years of experience.
- Target Industrie
- Medical X-Ray sector (analog, DR diagnostic equipment, mammography, and CT equipment).Medical X-Ray sector (analog, DR diagnostic equipment, mammography, and CT equipment).
- Industrial X-Ray inspection and measurement equipment.Industrial X-Ray inspection and measurement equipment.
- Dental X-Ray diagnostic systems.Dental X-Ray diagnostic systems.
- Major Markets
- Africa, EgyptAfrica, Egypt
- South Korea, Southeast Asia, Middle East, IndiaSouth Korea, Southeast Asia, Middle East, India
- Europe, Germany, Russia, France, Hungary, SwitzerlandEurope, Germany, Russia, France, Hungary, Switzerland
- United States, MexicoUnited States, Mexico
- Certifications/Patents
- Possession of CE certification (including MDR) and CSA certification for models LUC-8M, 10M, 11L, 11M, 12M, 14U, 15U, 13L, 17U, 19U.Possession of CE certification (including MDR) and CSA certification for models LUC-8M, 10M, 11L, 11M, 12M, 14U, 15U, 13L, 17U, 19U.
- Acquisition of ISO 13485 certification (valid until ~2027) and FDA approval.Acquisition of ISO 13485 certification (valid until ~2027) and FDA approval.
- Holding certificates for an affiliated research institute, venture business confirmation, and small and medium-sized enterprise confirmation.Holding certificates for an affiliated research institute, venture business confirmation, and small and medium-sized enterprise confirmation.
- Certified as a specialized material and component company in 2017.Certified as a specialized material and component company in 2017.
- Core technological competitiveness in Nano Cold Cathode X-ray Tube (CNT) technology and high-power digital high-speed modulation technology.Core technological competitiveness in Nano Cold Cathode X-ray Tube (CNT) technology and high-power digital high-speed modulation technology.
Introduction
Location
10-167 Cheomdangieop 5-ro, Sandong-eup, Gumi, Gyeongsangbuk-do, South Korea
