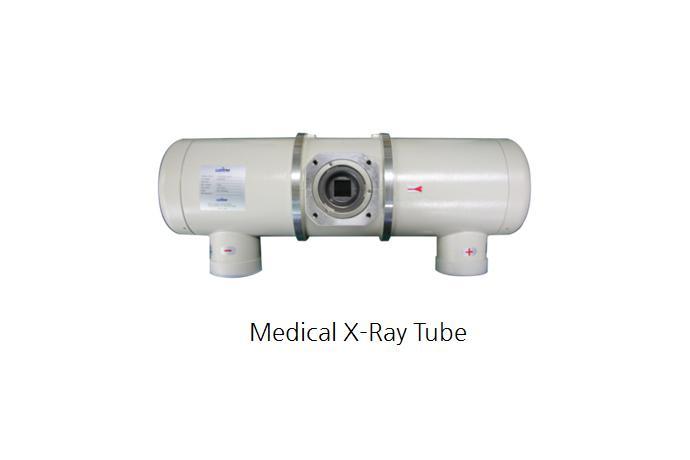

product Image
LUC-9M
Model Name
LUC-9M
Series
Medical X-ray Tube
View All
Data
-
Manufacturer information
provider logo
LUCEM

X-Ray tube manufacturer, Industrial / Dental / Medical X ray tube, Stator assembly, Housing assembly and more

Problem with product info?
Update request
Manufacturer
LUCEM
Product Type
Machine
Brand
-
SKU
57501
Product Name
-
Model Name
LUC-9M
Size
-
Weight
-
Product Details
ITEM Spec Note

Maximum tube voltage

 40~125kV

Maximum tube current

 Large 530㎃/ Small 250㎃
Focal Spot Large 1.5mm / Small 0.6mm
Anode Input power (60Hz) Large 45kW / Small 18kW

.time : 0.1s
Anode Rotor Speed (Min) 50Hz 2,700rpm / 60Hz 3,200rpm
Target Angle 14°

Target Material

 W-Re, Mo

Anode Heat Content (kHU)

 Large 5.1A / Small 5.1A
Anode Heat Content (kHU) 140kHU
