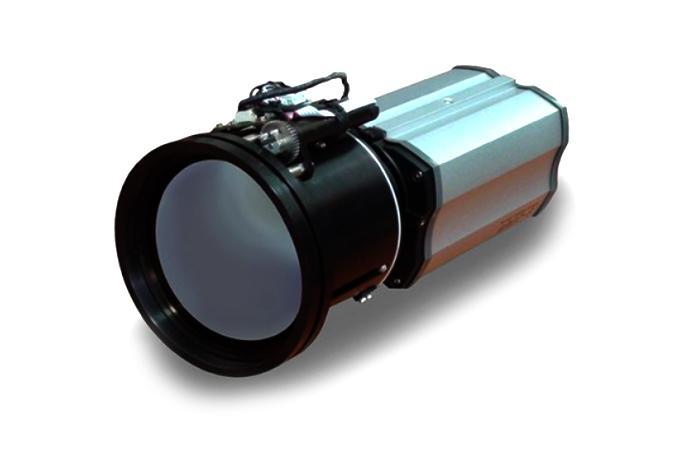

Infrared Thermal Cameras For Security
Model
Series
Infrared Thermal Cameras For Security
Transaction Process
Please contact the manufacturer/supplier.
Payment
Contact the manufacturer/supplier.
Delivery
Contact the manufacturer/supplier.
Shipment
Contact the manufacturer/supplier.
Origin
Contact the manufacturer/supplier.
Description
Based on DSP core technology and TCP/IP interface, Uncooled microbolometer long wave infrared (LWIR) camera.
Based on DSP core technology and TCP/IP interface, Uncooled micro bolometer long wave infrared (LWIR) camera.
15~100mm Continuous optical zoom, Continuous Digital zoom
IP network camera (ONVIF compliance)
Auto Focus
- High speed auto focus
Zoom, Pan & Tilt
- By only OnVif command over Ethernet.
※ No need RS-485/422 cable
With a built-in Web server
PoE(Power over Ethernet)
- Standard PoE+(IEEE 802.3at) and PoE(IEEE 802.3af-2003)
8 kinds of color mode, 3 kinds of image filter in accordance with the environment
| Imaging Performance | |||
| Detector Type | Focal Plane Array(FPA) Uncooled microbolometer, Vox | ||
|---|---|---|---|
| Pixel Resolution | 640x480 | ||
| Spectral Range | 8-14 μm | ||
| Average Transmission | 87% | ||
| F# | 1.4 | ||
| FOV | Narrow: 6.15° (H) x 4.6° (V) Wide: 43° (H) x 31.5° (V) | ||
| Focal Length | 15 ~ 100mm(continuous zoom) | ||
| Digital Zoom | <70mK | ||
| Measurement | |||
| NETD | 16bit digital | ||
| Image Presentation | |||
| Digital Output | MPEG4, H.264 | ||
| Video streaming | 30Hz | ||
| Environmental | |||
| Operating Temperature | -20°C ~ +55°C | ||
| Storage Temperature | -25°C ~ +60°C | ||
| Physical Characteristics | |||
| Weight | 1.9Kg | ||
| Size(L x H x W) | 282 x 115 x 115 (mm) | ||
| Included Components | |||
| Power Supply | PoE(Power over Ethernet) | ||
| Compliance | ONVIF | ||
| Recommended Range(Focal Length: 100mm) | |||
| Human(1.7m) | CAR() | ||
| Detection | 2,301m | 3,114m | |
| Recognition | 1,013m | 1,370m | |
| Identification | 506m | 685m | |
Lens: 100mm
Distance : 0.7~1.1Km
Object : city View(BLd.)
Lens: 100mm
Distance : 0.7~1.1Km
Object : city View(BLd.)
