Product Name
-
Model Name
ARGO6C15-OP420
Size
-
Weight
-
Product Details

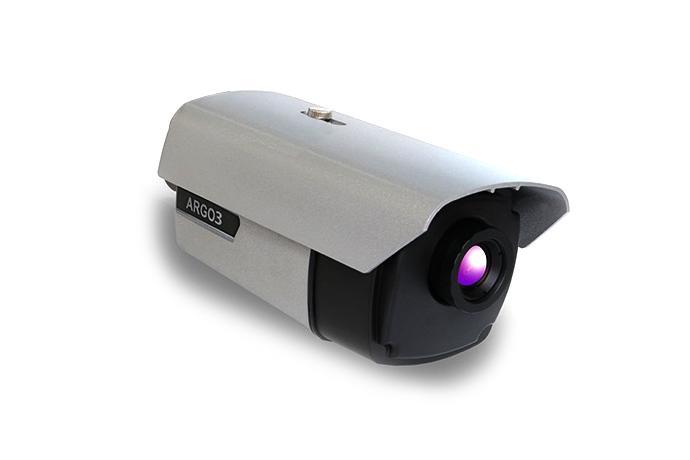

Based on DSP core technology and TCP/IP interface, Uncooled microbolometer long wave infrared (LWIR) camera.
Based on DSP core technology and TCP/IP interface, Uncooled micro bolometer long wave infrared (LWIR) camera.
75mm Lens, Continuous Digital zoom
IP network camera (ONVIF compliance)
Auto Focus - High speed auto focus
Zoom, Pan & Tilt - By only OnVif command over Ethernet.
※ No need RS-485/422 cable
With a built-in Web server
PoE(Power over Ethernet) - Standard PoE+(IEEE 802.3at) and PoE(IEEE 802.3af-2003)
8 kinds of color mode, 3 kinds of image filter in accordance with the environment
| Imaging Performance | |||
| Detector Type | Focal Plane Array(FPA) Uncooled microbolometer,Vox | ||
|---|---|---|---|
| Pixel Resolution | 640x480 | ||
| Spectral Range | 8-14 μm | ||
| Average Transmission | 90% | ||
| F# | 1 | ||
| FOV | 10.3° | ||
| Focal Length | 75mm | ||
| Measurement | |||
| NETD | <70mK | ||
| Image Presentation | |||
| Digital Output | 16bit digital | ||
| Video streaming | MPEG4, H.264 | ||
| Frame rate | 30Hz | ||
| Environmental | |||
| Operating Temperature | -32°C ~ +70°C | ||
| Storage Temperature | -45°C ~ +75°C | ||
| Encapsulation | IP66 | ||
| Physical Characteristics | |||
| Weight | 4.5Kg | ||
| Size(L x H x W) | 562 x 149 x 178 (mm) | ||
| Included Components | |||
| Power Supply | PoE(Power over Ethernet)? | ||
| Compliance | ONVIF | ||
| Recommended Range(Focal Length: 75mm) | |||
| Human(1.7m) | CAR(2.3m) | ||
| Detection | 1,372m | 1,856m | |
| Recognition | 604m | 817m | |
| Identification | 302m | 408m | |
75mm Lens - Distance: 50M
75mm Lens - Distance: 400M
